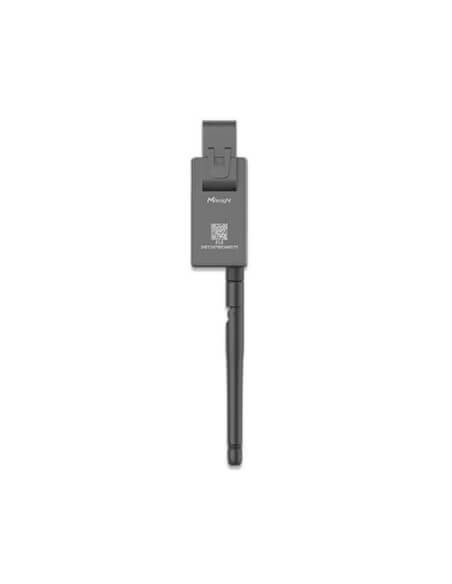

Milesight Smart Current Transformer - Energy MonitoRing

The Milesight Smart Current Transformer (CT10x) is an advanced energy monitoring solution that enables efficient tracking and analysis of energy consumption. Designed for easy installation and compatibility with LoRaWAN® networks, it offers precise measurements and real-time alerts, making it ideal for smart buildings and industrial applications.

Features

• Induced Current Power Supply: Operates without the need for external power sources, simplifying installation.
• Maximum Input Current: Supports up to 100A for versatile energy monitoring.
• LoRaWAN® Compatibility: Seamlessly integrates with Milesight LoRaWAN® gateways and IoT Cloud solutions.
• Real-Time Monitoring: Provides instantaneous insights into energy consumption patterns.

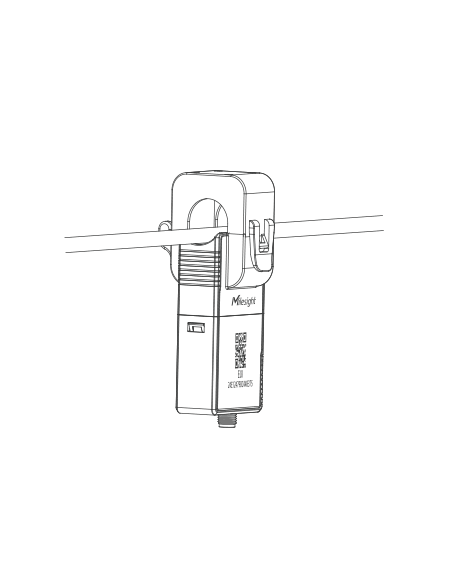

• Non-Invasive Installation: The clamp design allows for quick and safe installation without de-energizing the circuit.
• Threshold Alarms: Configurable alerts for over-current conditions to enhance safety and operational efficiency.
• Compact Design: Small footprint allows for installation in tight spaces.
• High Sampling Frequency: Up to 3.3kHz for accurate energy consumption monitoring.
• Data Visualization: Access insights through a web interface or mobile app.
• Temperature Monitoring: Optionally includes an external wire temperature sensor for additional safety.

Specifications

• Model: CT101
• Rated Primary Current: 100 A
• Transformer Ratio: 1000:1
• Accuracy: ±1% (>5Arms), ±3% (≤5Arms)
• Sampling Frequency: 3.3 kHz
• Wireless Protocol: LoRaWAN®
• Operating Temperature: -20°C to 70°C
• Ingress Protection: IP30
• Dimensions: 86.5 × 31 × 37.4 mm
• Weight: 85.65 g
