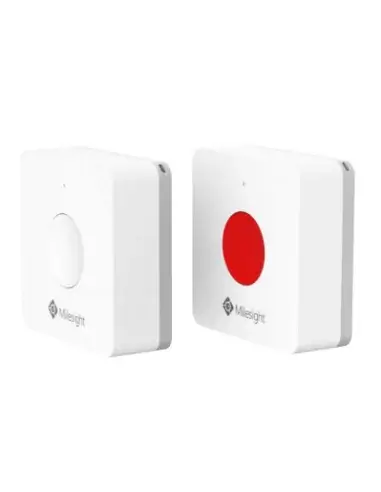

Milesight Smart Button Sensor

The Milesight Smart Button Sensor WS101 is a versatile and compact device designed for wireless control, triggering scenes, and emergency alerts. Utilizing LoRaWAN® technology, it offers long-range communication and ultra-low power consumption, making it an ideal solution for smart homes, offices, and various applications.

Features

• LoRaWAN® Technology: Enables encrypted radio transmissions over long distances, with a communication range of up to 15 km in rural areas.
• Multiple Press Actions: Supports various pressing actions, allowing users to define different alarms or control devices.
• Compact and Portable: Easy to install and carry, suitable for various environments including homes, offices, and schools.
• NFC Configuration: Simplifies setup through NFC technology, allowing users to configure the device with a simple tap.
• Milesight D2D Communication: Facilitates direct communication between Milesight devices without needing a LoRaWAN® gateway.
• Long Battery Life: Designed for extended use with a battery life of over 5 years under normal conditions.
• Built-in LED and Buzzer: Provides visual and audible feedback for button presses, network status, and low battery alerts.

Specifications

• Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
• Tx Power: 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz)
• Sensitivity: -137 dBm @ 300 bps
• Power Supply: 1 × 1650 mAh ER14335 Li-SOCl2 battery
• Operating Temperature: -20°C to +60°C
• Ingress Protection: IP30
• Dimensions: 50 × 50 × 18 mm (1.97 × 1.97 × 0.71 in)
• Material: Anti-flaming Polycarbonate
• Color: White (Button: White/Red Optional)
