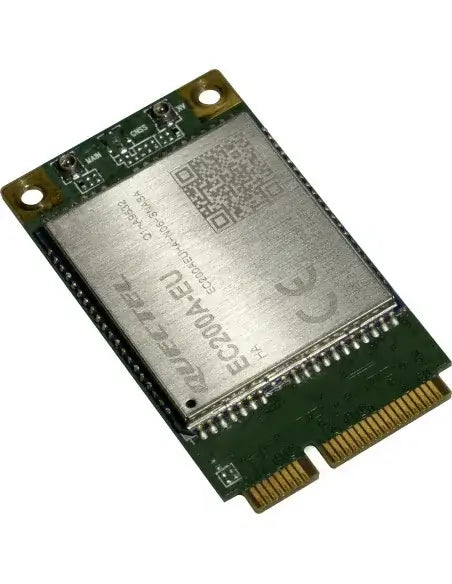

MikroTik R11eL-EC200A MiniPCIe CAT4 LTE Card

The MikroTik R11eL-EC200A MiniPCIe CAT4 LTE Card is a powerful upgrade from the previous R11 LTE4 modem, providing high-speed LTE connectivity at an affordable price. With support for a wide range of frequencies, including the popular B28 band, this card is ideal for various applications requiring reliable mobile broadband.

Features

• High-Speed Performance: Achieve download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps.
• Wide Frequency Support: Compatible with multiple LTE FDD and TDD bands, ensuring versatile connectivity.
• Backward Compatibility: Supports 3G and 2G bands, providing a reliable fallback option in areas with limited LTE coverage.
• Cost-Effective Upgrade: Offers the same performance as the previous model at a lower price point.

Specifications

• Max Download Speed: 150 Mbps
• Max Upload Speed: 50 Mbps
• Supported LTE FDD Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
• Supported LTE TDD Bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)
• Supported 3G Bands: 1 (2100 MHz), 5 (850 MHz), 8 (900 MHz)
• Supported 2G Bands: 3 (1800 MHz), 8 (900 MHz)
• Operating Temperature: -35°C to 70°C
• Power Consumption: 3 W
• Certification: CE, ROHS
