MikroTik mANTBox 2 12s - 2.4GHz 12dBi Sector Antenna

The MikroTik mANTBox 2 12s is an integrated base station designed for long-range wireless communication in the 2.4GHz spectrum. With a 12dBi gain and 120-degree beamwidth, it provides robust connectivity for various applications, making it ideal for both urban and rural deployments.

Features

• Integrated Base Station: Combines a high-performance antenna and wireless router in a single unit.
• High Gain: 12dBi gain for extended coverage and improved signal strength.
• Wide Beamwidth: 120-degree beamwidth allows for broad coverage area.
• Powerful CPU: Equipped with a 600MHz CPU for efficient processing.

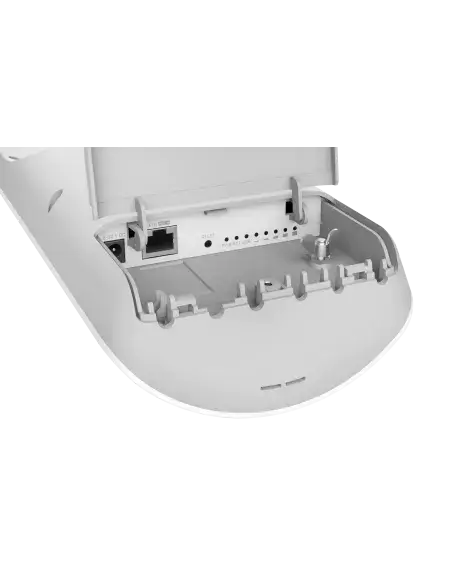

• Gigabit Ethernet: Features a Gigabit Ethernet port for high-speed wired connections.
• Ready to Use: Comes pre-configured with RouterOS, requiring no additional setup.
• Robust Design: Designed for outdoor use with an operating temperature range of -40°C to 70°C.

Specifications

• Antenna Gain: 12dBi
• Beam-width: 120°
• Wireless Standards: 802.11b/g/n
• Max Output Power: 30 dBm
• CPU Frequency: 600 MHz
• RAM: 64 MB
• Storage: 128 MB (NAND)
• Ethernet Ports: 1x 10/100/1000
• Power Consumption: 11W
• Power Input: 10V-28V (Passive PoE)
• Dimensions: 140 x 348 x 82 mm
• Weight: 1.2 kg
• Operating System: RouterOS (Level 4 License)
