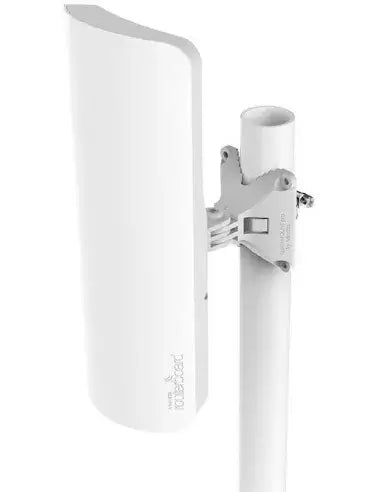

MikroTik mANTBox 2 12s 12dBi Integrated Sector Antenna

The MikroTik mANTBox 2 12s is a powerful integrated sector antenna designed for long-range connectivity in the 2.4GHz spectrum. With a gain of 12dBi and a wide beamwidth of 120 degrees, it is ideal for base station applications, providing robust wireless coverage and high-speed connections.

Features

• Integrated Design: Combines a high-performance antenna with a built-in wireless router, streamlining installation and setup.
• High Output Power: Delivers up to 30 dBm output power for extended range and improved connectivity.
• High-Speed Processing: Equipped with a 600 MHz CPU for efficient data handling and network management.
• Gigabit Ethernet Port: Ensures fast wired connections for devices needing high throughput.
• Wide Beamwidth: Offers a 120-degree coverage area, suitable for wide-area deployments.
• Robust Operating System: Comes with RouterOS pre-installed, providing extensive features and capabilities for network management.

Specifications

• Antenna Gain: 12 dBi
• Beam Width: 120°
• Data Rate: 2.4GHz up to 300Mbps
• Ethernet Ports: 1 x 10/100/1000
• CPU: AR9342, 600 MHz
• RAM: 64 MB
• Storage: 128 MB NAND
• Power Consumption: Max 11 W
• Operating Temperature: -40°C to 70°C
• PoE Input: 10V-28V (Passive PoE)
• Dimensions: 140 x 348 x 82 mm
