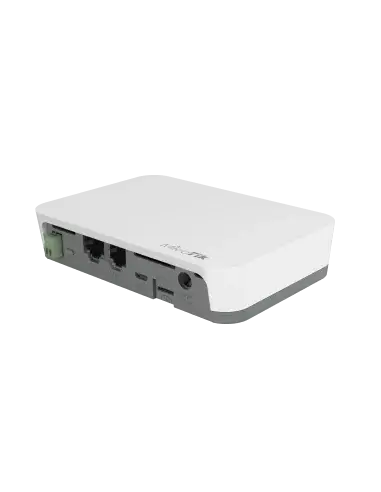

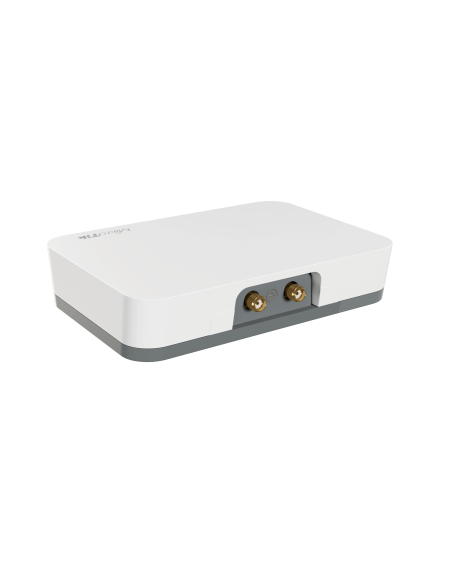

MikroTik IoT LR8 Gateway - 2.4 GHz, LoRa®, Bluetooth

The MikroTik IoT LR8 Gateway is an advanced IoT solution designed for seamless integration across various devices and communication protocols. Featuring support for LoRa® technology, this gateway provides low-cost, low-bandwidth cellular connection options, making it ideal for diverse applications such as asset tracking, environmental monitoring, and industrial automation.

Features

• LoRa® Technology: Supports 868MHz or 915MHz frequencies for long-range communication.
• Dual Connectivity: Offers 2.4 GHz wireless and Bluetooth capabilities for versatile connections.
• Ethernet Ports: Equipped with 2 x 100 Mbps Ethernet ports for reliable wired connections.
• Power over Ethernet: Features PoE-in and PoE-out options for flexible power management.
• MicroUSB and GNSS: Includes a MicroUSB port for additional connectivity and built-in GNSS for location tracking.
• GPIO and RS485/Modbus: Provides GPIO pins for sensor integration and RS485/Modbus for industrial communication.

Specifications

• Product Code: RB924iR-2nD-BT5&BG77&R11e-LR8
• CPU: QCA9531, 650 MHz
• RAM: 64 MB
• Storage: 128 MB flash SPI NAND
• Wireless Standards: 802.11 b/g/n
• Antenna Gain: 1.5 dBi
• Bluetooth Version: 5.2
• Operating Temperature: -40°C to 70°C
• Dimensions: 122 x 87 x 26 mm
• Weight: 0.200 kg
