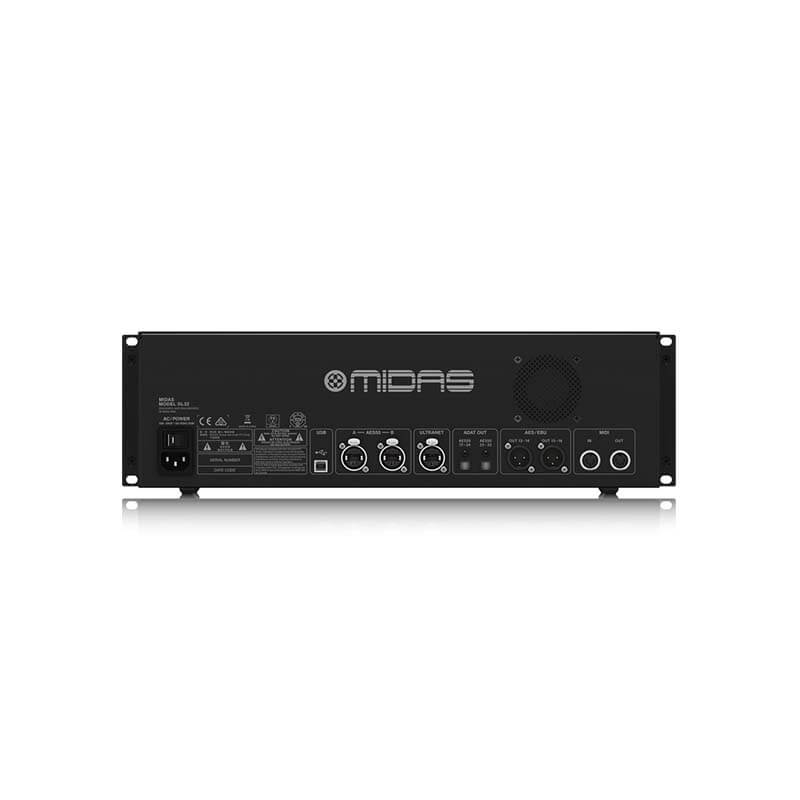

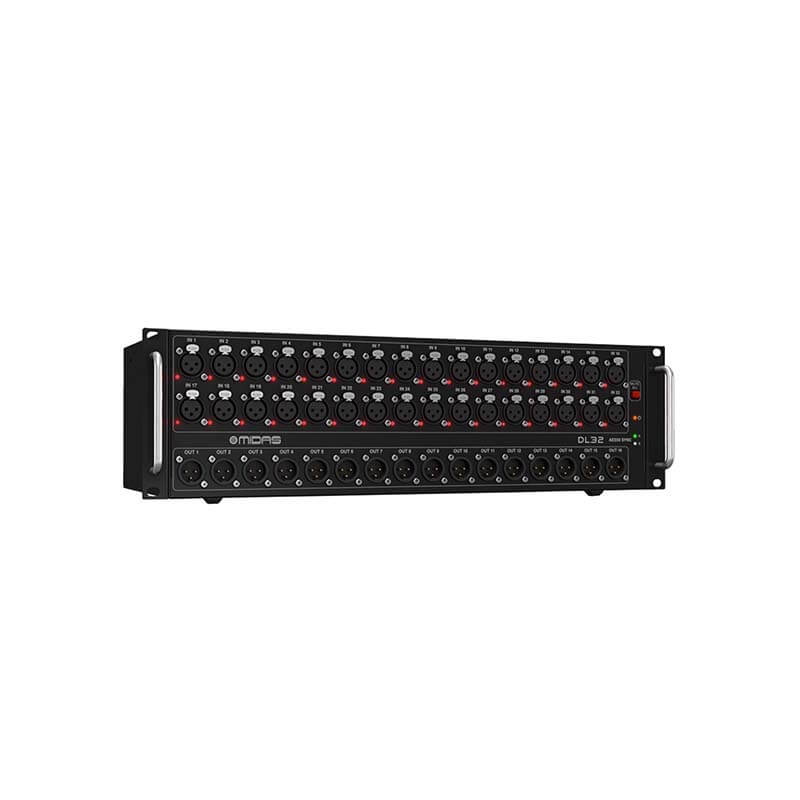

Midas DL32 32-Input Digital Stagebox with Midas Mic Preamps & 96kHz ADCs

The Midas DL32 is a high-performance digital stagebox designed for professional audio applications. Featuring 32 award-winning Midas microphone preamps and 16 balanced analog outputs, it provides seamless connectivity for live sound environments. With AES50 networking capabilities, the DL32 allows for easy integration with digital mixing consoles and personal monitoring systems through ULTRANET technology, ensuring high-quality audio transmission over a single CAT5 cable.

Features

• 32 Midas PRO Series Microphone Preamplifiers: Provides exceptional sound quality and low noise operation.
• 16 Balanced Analog XLR Outputs: Facilitates easy connection to various audio devices.
• AES50 Networking: Supports high-capacity, ultra-low latency digital interconnectivity.
• ULTRANET Compatibility: Allows direct connection to TURBOSOUND iQ Series loudspeakers and Behringer POWERPLAY P-16 for personal monitoring.
• ADAT and AES-3 Outputs: Offers additional digital connectivity for outboard devices.
• USB Port: Enables system updates and configuration via PC.
• Rugged 3U Rackmount Design: Built to withstand the rigors of touring and live performance.
• Easy Setup: Connects with a single CAT5e cable up to 100 m (328') for streamlined installation.

Specifications

• Input Channels: 32
• Output Channels: 16
• Sample Rate: 96 kHz
• Weight: 5.7 kg (12.54 lbs)
• Dimensions: 190 x 95 x 54 mm (7.49 x 3.75 x 2.14 inches)
• Power Source: Corded Electric
• Voltage: 240 Volts
• Wattage: 55 watts
