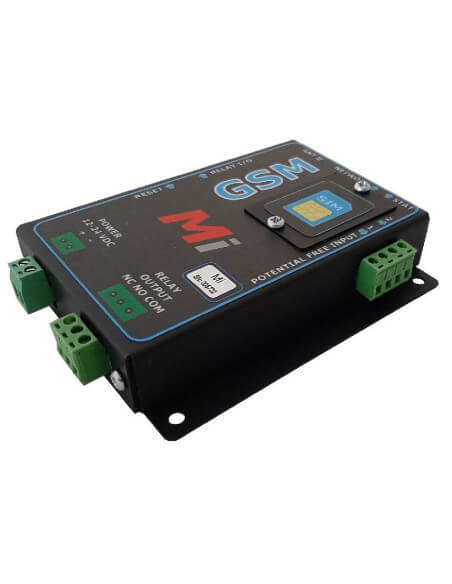

Micro Instruments GSM Relay Rev D - Temp MonitoRing, 2 Inputs

The Micro Instruments GSM Relay Rev D is a versatile GSM-based control module that enables users to remotely monitor and control devices via SMS. It features two inputs for various applications, including temperature monitoring, and one relay output for device control. Ideal for home or office use, it can reset inaccessible router boards and alert users about power failures and low battery conditions.

Features

• GSM Control: Operate devices remotely via SMS commands.
• Temperature Monitoring: Includes a sealed waterproof temperature sensor with a range of -55°C to 125°C.
• Configurable Alarms: High and low temperature alarm settings to notify users of environmental changes.
• Dual Inputs: Two potential-free inputs for versatile applications, such as monitoring mains power and alarm systems.
• Relay Output: One relay output (10A) for controlling connected devices or triggering automated actions.
• User-Friendly Setup: Easily configure and manage through SMS commands.
• Auto Status SMS: Sends periodic updates on device status and battery level to avoid disconnection from service providers.

Specifications

• Power Input: 10V to 30V DC
• Relay Output: 10A dry relay contact
• Temperature Sensor Accuracy: 0.5°C
• Input Names: Default names are 'Mains' for Input 1 and 'Alarm' for Input 2, customizable via SMS.
• Operating Temperature Range: -55°C to 125°C
• Dimensions: 175mm x 75mm x 40mm
• Weight: 0.23kg
