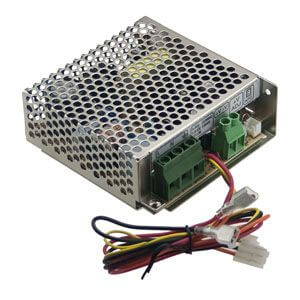

Mean Well SCP-35 24V 35W Security Power Supply

The Mean Well SCP-35 24V 35W Security Power Supply is designed for reliable and efficient power delivery in security applications. With a single output and an enclosed frame, it ensures safety and durability, making it an ideal choice for various electronic devices.

Features

• Wide Input Voltage Range: Accepts input voltage from 85VAC to 264VAC and 120VDC to 370VDC, providing flexibility in various installation environments.
• Stable Output: Delivers a consistent output of 27.6VDC at a maximum current of 1.4A, ensuring reliable performance for connected devices.
• Compact Design: Enclosed frame with screw terminals allows for easy installation and secure connections.
• Safety and Compliance: Meets international safety standards, providing peace of mind for users in sensitive environments.
• High Efficiency: Achieves up to 86% efficiency, minimizing energy loss and reducing operational costs.

Specifications

• Model: SCP-35-24
• Input Voltage: 85-264VAC / 120-370VDC
• Output Voltage: 27.6VDC
• Rated Current: 1.4A
• Rated Power: 35W
• Efficiency: 86% (typical)
• Hold Up Time: 50ms at full load
• Operating Temperature: -20°C to +60°C
• Dimensions: 99mm (L) x 97mm (W) x 36mm (H)
• Weight: 0.37kg
