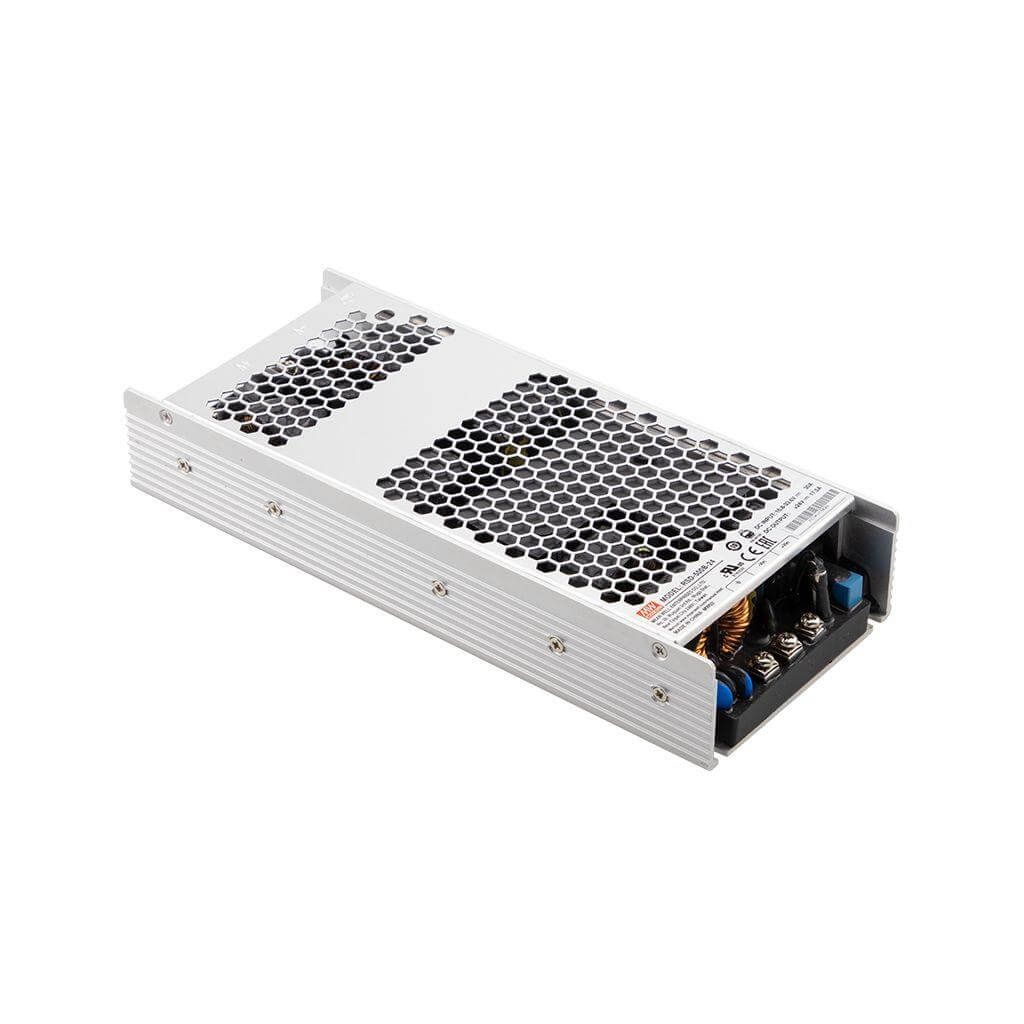

Mean Well RSD-500B 48V DC-DC Converter
Mean Well RSD-500B 48V DC-DC Converter
SKU:MW-RSD-500B-48
Out of stock
Regular price
R 10,404.00
Regular price
Sale price
R 10,404.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
The Mean Well RSD-500B is a reliable 500W enclosed type DC-DC converter designed specifically for railway applications. Its fanless design and compact 1U low profile make it suitable for various environments, ensuring efficient performance with enhanced safety features.
Features
- 1U Low Profile: Compact design with a height of only 41mm, perfect for space-constrained installations.
- Wide Input Range: Operates within a 2:1 input voltage range, allowing flexibility in various applications.
- Fanless Design: Ensures silent operation and reduces maintenance needs, utilizing free air convection for cooling.
- Comprehensive Protections: Includes short circuit, overload, overvoltage, overtemperature, input reverse polarity, and input undervoltage protection to ensure safe operation.
- High Efficiency: Designed for optimal performance with a typical efficiency of up to 93%, reducing energy consumption.
Specifications
- Input Voltage Range: 40 ~ 56V DC
- Output Voltage: 48V DC
- Rated Power: 500W
- Rated Current: 10.4A
- Efficiency: Up to 93%
- Operating Temperature: -40 ~ +80 °C
- Storage Temperature: -40 ~ +85 °C
- Dimensions: 237mm (L) x 100mm (W) x 41mm (H)
- Weight: 1.45 kg
- MTBF: 834.7K hours minimum
