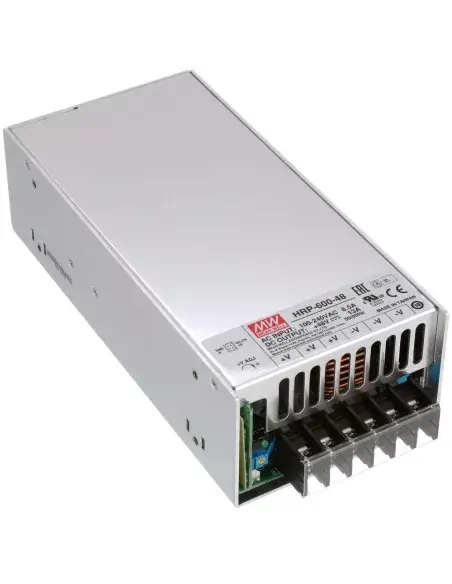

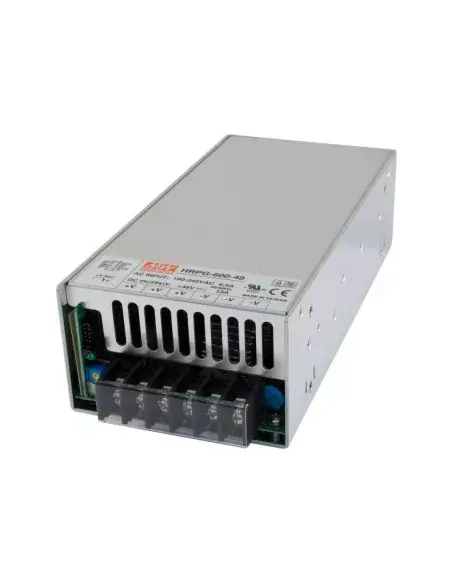

Mean Well 600W 48V High Reliability Power Supply

The Mean Well 600W 48V High Reliability Power Supply is engineered for high performance and reliability in various applications. With a wide input voltage range and a robust output, it is ideal for industrial control and medical applications, ensuring consistent power delivery under demanding conditions.

Features

• High Reliability: Designed for continuous operation in critical applications.
• Wide Input Voltage Range: Accepts input from 85 to 264VAC, providing flexibility in installation.
• Single Output: Delivers a stable output of 48V at up to 13A, making it suitable for various devices.
• Compact Design: Small footprint allows for easy integration into existing systems.
• PFC Function: Features Power Factor Correction for improved efficiency and reduced energy consumption.

Specifications

• Input Voltage: 85-264VAC
• Output Voltage: 48V
• Output Current: 0-13A
• Rated Power: 600W
• Efficiency: Up to 89%
• Operating Temperature: -40 to +70°C
• Dimensions: 218mm (L) x 105mm (W) x 63.5mm (H)
• Weight: 1.5kg
• Safety Standards: UL62368-1, TUV EN62368-1, EAC TP TC 004
