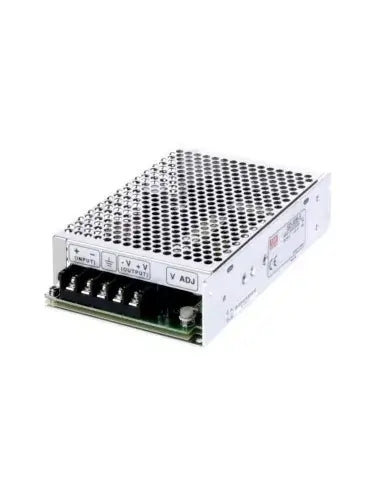

Mean Well 50W DC-DC Converter - 12V Output

The Mean Well 50W DC-DC Converter is designed for efficient power conversion, providing a stable 12V output from a wide input voltage range. Ideal for various electronic applications, this converter combines reliability with high performance, ensuring your devices receive the power they need.

Features

• High Efficiency: Achieves up to 80% efficiency, minimizing energy loss during conversion.
• Wide Input Voltage Range: Accepts input voltages from 19V to 36V, making it versatile for different power sources.
• Compact Design: Measures 159mm x 97mm x 38mm, allowing for easy integration into various setups.
• Robust Protection Features: Includes over-voltage, over-current, and short-circuit protection to ensure safe operation.
• Low Ripple and Noise: Provides stable output with minimal ripple and noise, ensuring clean power delivery.
• Reliable Performance: Rated for continuous operation with a maximum output current of 4.2A at 12V.

Specifications

• Model: SD-50B-12
• Rated Output Power: 50W
• Output Voltage: 12V
• Output Current: 4.2A
• Input Voltage Range: 19V - 36V
• Efficiency: 80% (typical)
• Line Regulation: ±2.0%
• Load Regulation: ±1.0%
• Ripple & Noise: 100mVp-p
• Working Temperature: -10°C to +60°C
• Dimensions: 159mm x 97mm x 38mm
• Weight: 0.43kg
• Warranty: 1 Year
