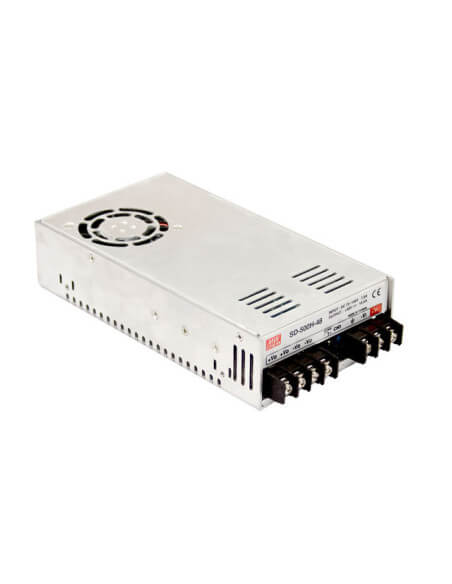

Mean Well - 500W DC-DC Converter - 24V Output

The Mean Well 500W DC-DC Converter is designed for reliability and high performance, providing a stable 24V output from a wide input voltage range. Ideal for various applications, this converter ensures efficient power conversion with robust protection features.

Features

• High Power Output: Delivers up to 500W of power, suitable for demanding applications.
• Wide Input Voltage Range: Accepts input voltages from 19V to 72V, allowing flexibility in various setups.
• Stable Output Voltage: Provides a consistent output of 24V with a maximum current of 21A.
• Protection Mechanisms: Includes over voltage, over current, and over temperature protections to ensure safe operation.
• Remote On/Off Control: Features remote control capabilities for convenient operation.
• Compact Design: Small dimensions for easy integration into various systems.

Specifications

• Input Voltage Range: 19 ~ 72VDC
• Output Voltage: 24VDC
• Rated Output Current: 21A
• Rated Power: 500W
• Efficiency: 86% to 89% typical
• Temperature Range: -20°C to +60°C
• Dimensions (L x W x H): 215 x 115 x 50 mm
• Weight: 1.15 kg
• MTBF: 215,000 hours (min)
