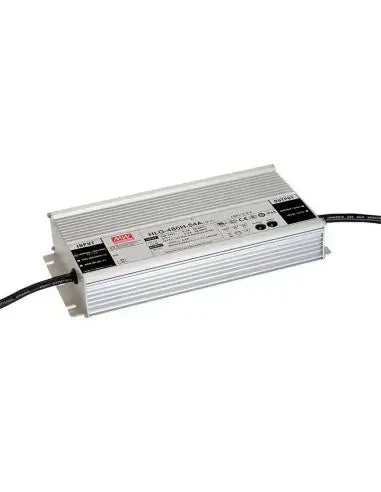

Mean Well 480W Constant Voltage & Current LED Driver

The Mean Well 480W Constant Voltage & Current LED Driver is a highly efficient and versatile power supply solution for LED lighting applications. With a robust design and a wide input voltage range, this driver ensures reliable performance in both indoor and outdoor environments.

Features

• Dual Mode Operation: Supports both constant voltage and constant current output, allowing for flexibility in LED applications.
• High Efficiency: Achieves up to 95.5% efficiency, minimizing energy loss and reducing operating costs.
• Wide Input Voltage Range: Operates from 90 to 305VAC, making it suitable for various power supply conditions.
• Durable Design: Metal housing with IP67/IP65 ingress protection, ensuring reliability in harsh environments.
• Temperature Range: Capable of operating in extreme temperatures from -40°C to +90°C under free air convection.
• Dimming Options: Equipped with various dimming methodologies, including 0-10V, PWM, and resistance for customizable lighting solutions.

Specifications

• Dimensions: L262 x W125 x H43.8mm
• Weight: 2.8kg
• Rated Output Power: 480.6W
• Input Voltage: 90 ~ 305VAC, 127 ~ 431VDC
• Output Voltage Range: 45.9 ~ 56.7V
• Rated Output Current: 4.4 ~ 8.9A
• Operating Temperature: -40°C to +90°C
• Protection: Short circuit, over voltage, and over temperature protection
