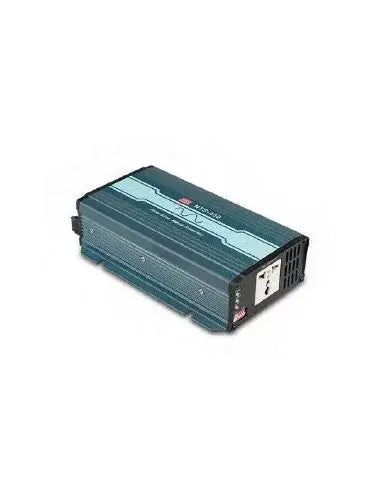

Mean Well 450W DC-AC Inverter - True Sine Wave, 48V

The Mean Well 450W True Sine Wave DC-AC Inverter is designed for high performance in lower wattage applications. With an impressive efficiency of up to 93%, this inverter provides reliable power for a variety of devices, making it ideal for use in homes, vehicles, yachts, and remote locations.

Features

• True Sine Wave Output: Delivers clean and stable power suitable for sensitive electronics.
• High Efficiency: Operates with an efficiency rate of up to 93%, minimizing energy loss.
• Continuous Power: Capable of providing 450W continuously.
• Peak Load Capacity: Supports peak loads of up to 517.5W for 180 seconds, 675W for 10 seconds, and 900W surge power for 30 cycles.
• Adjustable Output: Output AC voltage and frequency can be easily adjusted via the front panel.
• Versatile Applications: Suitable for powering home appliances, power tools, and office equipment.
• Compact Design: Lightweight and compact for easy installation and portability.
• Multiple Protection Features: Includes protections against overloading, short circuits, and overheating.

Specifications

• Model: MW-NTS-450-248UN
• Input Voltage: 48V DC
• Output Power: 450W (Continuous)
• Peak Power: 517.5W (180 seconds), 675W (10 seconds), 900W (30 cycles)
• Efficiency: Up to 93%
• Output Waveform: True Sine Wave (THD < 3%)
• Operating Temperature: -25°C to +70°C
• Dimensions: 186mm x 100.5mm x 32mm
• Weight: 0.75kg
• Warranty: 3 Years
