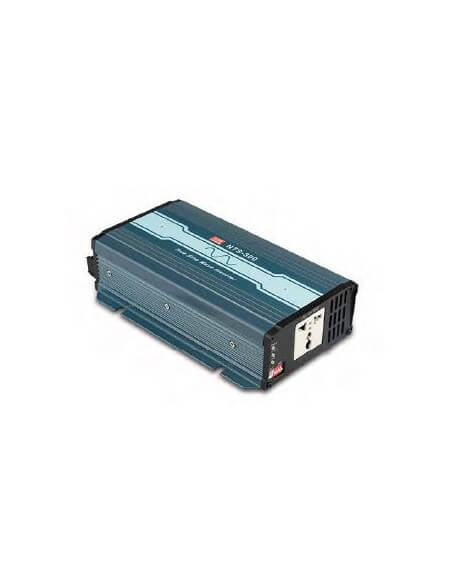

The Mean Well 300W DC-AC Inverter is a high-performance inverter designed for reliable power conversion in off-grid applications. It features true sine wave output, making it suitable for sensitive electronics and appliances. With an efficiency of up to 93%, this inverter provides continuous power of 300W and can handle peak loads of up to 600W, ensuring stability and performance during demanding tasks.

Features

• True Sine Wave Output: Provides clean power with low total harmonic distortion (THD < 3%) for sensitive devices.
• High Efficiency: Achieves efficiency levels up to 93%, maximizing battery life and reducing energy waste.
• Peak Power Capability: Supports peak loads of 345W for 180 seconds, 450W for 10 seconds, and 600W surge power for 30 cycles.
• User-Friendly Adjustments: Output AC voltage and frequency can be easily adjusted via DIP switches on the front panel.
• Wide Application Range: Ideal for powering home appliances, power tools, and office equipment in vehicles, yachts, and remote locations.
• Multiple Protection Features: Includes protections against reverse polarity, DC low alarm, overload, and over-temperature.

Specifications

• Rated Power: 300W
• Peak Power: 600W (30 cycles), 450W (10 seconds), 345W (180 seconds)
• Input Voltage: 24V DC
• Output Voltage: 110VAC (selectable 100/110/115/120VAC)
• Output Frequency: 50/60Hz (selectable)
• Efficiency: Up to 93%
• Operating Temperature: -25°C to +65°C
• Dimensions: 210mm (L) x 130mm (W) x 55mm (H)
• Weight: 1.3 kg
• Warranty: 3 years
