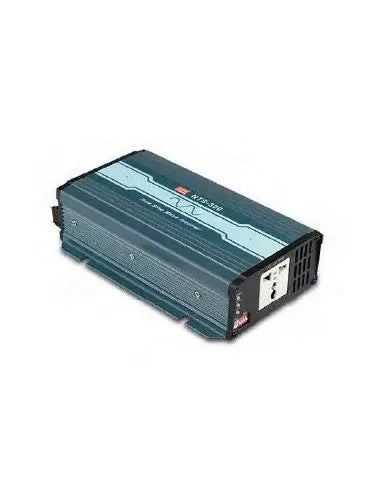

Mean Well 300W DC-AC Inverter - True Sine Wave, 12V

The Mean Well 300W True Sine Wave DC-AC Inverter is a high-performance power inverter designed for lower wattage applications. It provides a pure sine wave output, ensuring compatibility with a wide range of home appliances and electronic devices. With an efficiency rating of up to 93%, this inverter is ideal for use in vehicles, yachts, mobile homes, and other locations where conventional power sources are unavailable.

Features

• High Efficiency: Up to 93% efficiency for optimal power conversion.
• Continuous Power Output: Delivers 300W of continuous power.
• Surge Power Capacity: Capable of handling surge loads up to 600W for 30 utility cycles.
• Adjustable Output: Output AC voltage and frequency can be easily adjusted via the front panel.
• Wide Application: Suitable for powering home appliances, power tools, and portable equipment.
• Compact Design: Lightweight and easy to install, making it perfect for mobile applications.
• Fanless Operation: Designed for silent operation without the need for a cooling fan.

Specifications

• Model: MW-NTS-300
• Input Voltage: 12V DC
• Output Voltage: 110V AC (selectable between 100/110/115/120VAC)
• Output Frequency: 50Hz/60Hz selectable
• Peak Load: 345W for 180 seconds, 450W for 10 seconds
• Surge Power: 600W for 30 utility cycles
• Efficiency: Up to 93%
• Operating Temperature: -25°C to +65°C
• Protection Features: Short circuit, overload, and over temperature protection
• Warranty: 3 years
