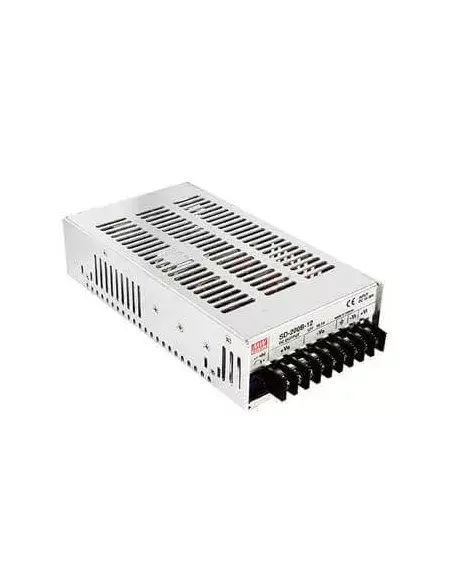

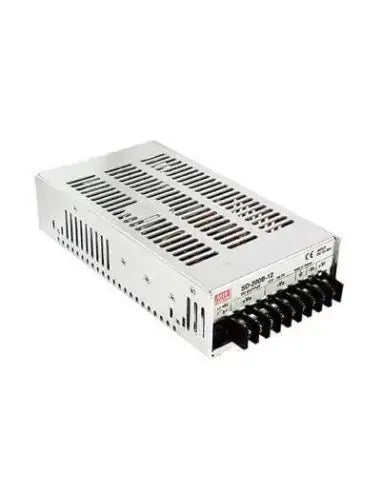

Mean Well - 200W DC-DC Converter - 19-36V Input, 48V Output

The Mean Well 200W DC-DC Converter is a high-performance power supply solution designed for applications requiring a stable output voltage of 48V from a variable input range of 19-36V. This single-output converter is ideal for various electronic devices, ensuring reliable power delivery with excellent efficiency.

Features

• Wide Input Voltage Range: Accepts input voltages from 19V to 36V, providing flexibility for various applications.
• Stable Output Voltage: Delivers a consistent 48V output with a maximum current of 4.2A, ensuring your devices receive the necessary power.
• High Efficiency: Achieves up to 86% efficiency, reducing energy loss and heat generation.
• Compact Design: With dimensions of 215 x 115 x 50 mm, this converter is designed for easy integration into various setups.
• Robust Protection Features: Includes over-voltage, over-current, and over-temperature protection to safeguard your devices.
• Compliance with Safety Standards: Meets international safety standards, ensuring reliability and safety in operation.

Specifications

• Input Voltage Range: 19-36VDC
• Output Voltage: 48VDC
• Rated Output Current: 4.2A
• Rated Power: 200W
• Efficiency: Up to 86%
• Line Regulation: ±1.0%
• Load Regulation: ±1.0%
• Setup Time: 300ms
• Working Temperature: -20 to +60°C
• Dimensions: 215 x 115 x 50 mm
• Weight: 1.1 kg
• Warranty: 1 Year
