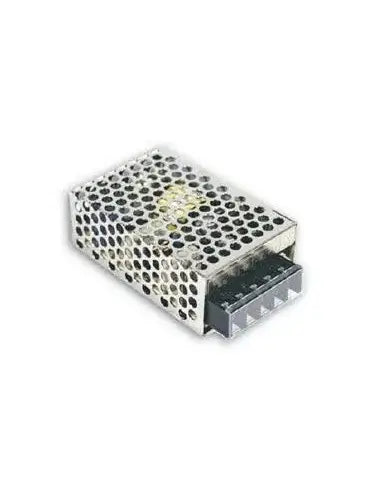

Mean Well 15W DC-DC Converter - 5V Output

The Mean Well 15W DC-DC Converter is a reliable and efficient power supply solution designed for various applications. With a single output of 5VDC, this converter offers excellent performance in a compact form factor, making it ideal for powering devices that require stable voltage conversion from a higher DC input.

Features

• High Efficiency: Operates with up to 83% efficiency, ensuring minimal energy loss during conversion.
• Compact Design: Dimensions of 50.8mm x 25.4mm x 11.27mm allow for easy integration into tight spaces.
• Wide Input Voltage Range: Accepts input voltages from 9V to 18VDC, making it versatile for different applications.
• Robust Protection Features: Equipped with over-current and short-circuit protection, ensuring safe operation.
• Temperature Range: Designed to operate in extreme temperatures from -40°C to +71°C, suitable for various environments.
• Long Lifespan: With a Mean Time Between Failures (MTBF) of over 300,000 hours, this converter is built for durability.

Specifications

• Input Voltage Range: 9 ~ 18VDC
• Output Voltage: 5VDC
• Rated Power: 15W
• Output Current: 3A max.
• Switching Frequency: 150kHz
• Efficiency: Up to 83%
• Isolation Voltage: 1.5kVDC
• Operating Temperature: -40°C to +71°C
• Dimensions: 50.8mm x 25.4mm x 11.27mm
• Weight: 31.2g
