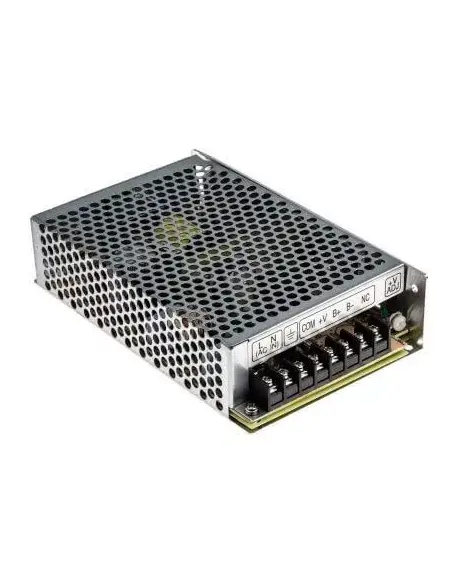

The Mean Well 155W Battery Charger is designed for efficient and reliable battery charging with an integrated UPS function. It provides stable 12V output and is ideal for various applications requiring backup power solutions.

Features

• Powerful Output: Provides 12V output with a rated current of 10.5A, ensuring efficient charging for a wide range of battery types.
• Integrated UPS Function: Offers uninterrupted power supply capabilities, allowing for seamless transition during power outages.
• Adjustable Voltage: Output voltage can be adjusted between 12V to 14.5V to suit different battery requirements.
• High Efficiency: Typical efficiency of 84%, minimizing energy loss during operation.
• Safety Features: Equipped with over-voltage, over-current, and short-circuit protections to ensure safe operation.

Specifications

• Model: AD-155A
• Rated Power: 155W
• Input Voltage Range: 88 ~ 264VAC
• Output Voltage: 12V (adjustable 12 ~ 14.5V)
• Rated Current: 10.5A
• Battery Charging Current: 0.5A
• Efficiency (Typ.): 84%
• Hold Up Time (Typ.): 24ms/230VAC at full load
• Working Temperature: -20 ~ +60°C
• Storage Temperature: -20 ~ +85°C
• Dimensions: 199mm x 110mm x 50mm
• Weight: 0.88kg
• Warranty: 1 Year
