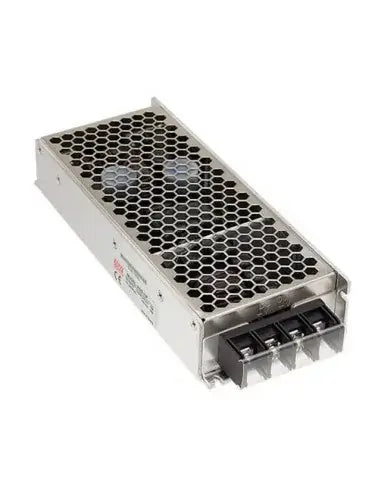

Mean Well 150W DC-DC Railway Converter - Single

The Mean Well 150W DC-DC Railway Converter is a robust and reliable solution designed specifically for railway applications. It features a single output and is equipped with multiple protection mechanisms to ensure safe and efficient operation in demanding environments.

Features

• Short Circuit Protection: Automatically shuts down output voltage to prevent damage during short circuit conditions.
• Overload Protection: Constant current limiting circuit that recovers automatically after the fault condition is removed.
• Over Voltage Protection: Shuts down output voltage when it exceeds 115-140% of the rated output.
• Over Temperature Protection: Automatically shuts down the output when high temperatures are detected, resuming operation once temperatures drop.
• Input Reverse Polarity Protection: Prevents damage by disconnecting output when input polarity is reversed.
• Built-in Constant Current Limiting: Ensures output current does not exceed the rated maximum.
• LED Indicator: Provides a visual indication of the power status.
• Cooling by Free Air Convection: Designed for optimal thermal management without the need for additional cooling systems.

Specifications

• Model: RSD-150C-24
• Input Voltage Range: 16.8 ~ 31.2VDC
• Output Voltage: 24VDC
• Rated Current: 6.25A
• Rated Power: 150W
• Efficiency: 89% (typical)
• Line Regulation: ±0.5%
• Load Regulation: ±1.0%
• Ripple & Noise: 150mVp-p
• Isolation Voltage: I/P-O/P: 4KVDC, I/P-FG: 2.5KVDC, O/P-FG: 2.5KVDC
• Working Temperature: -40 ~ +70°C
• Dimensions: 189mm (L) x 77mm (W) x 36mm (H)
• Weight: 0.8kg
• MTBF: 2405.1K hours minimum
• Warranty: 1 Year
