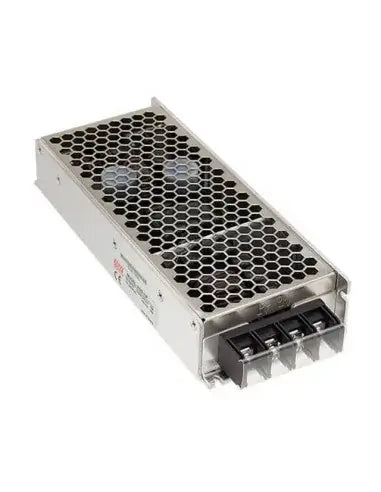

Mean Well 150W DC-DC Railway Converter - Single

The Mean Well 150W DC-DC Railway Converter is designed for railway applications, ensuring reliable and efficient power conversion with a single output. It features robust protections and a built-in constant current limiting circuit, making it ideal for various demanding environments.

Features

• Short Circuit Protection: Automatically shuts down output voltage during a short circuit and recovers upon reset.
• Overload Protection: Constant current limiting ensures safety and system reliability.
• Over Voltage Protection: Prevents damage by shutting down the output when voltage exceeds safe levels.
• Over Temperature Protection: Shuts down output voltage during high temperature conditions, automatically recovering when temperatures drop.
• Input Reverse Polarity Protection: Safeguards the unit from damage if the input voltage is connected incorrectly.
• LED Indicator: Provides a clear indication of power status.
• Free Air Convection Cooling: Efficient cooling without the need for additional fans or cooling systems.

Specifications

• Model: RSD-150C-12
• Rated Power: 150W
• Input Voltage Range: 33.6V to 62.4V DC
• Output Voltage: 12V DC
• Rated Current: 12.5A
• Efficiency: Up to 89%
• Isolation Voltage: 4000V DC (Input to Output)
• Operating Temperature: -40°C to +70°C
• Dimensions: 189mm (L) x 77mm (W) x 36mm (H)
• Weight: 0.8 kg
• MTBF: 189,000 hours
