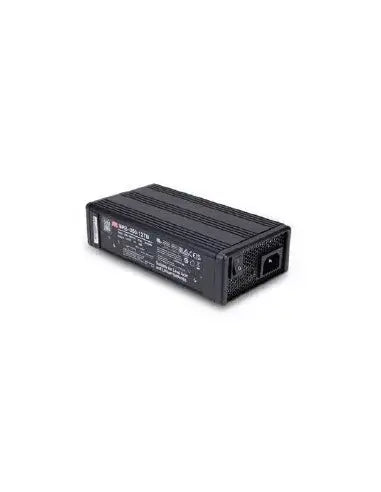

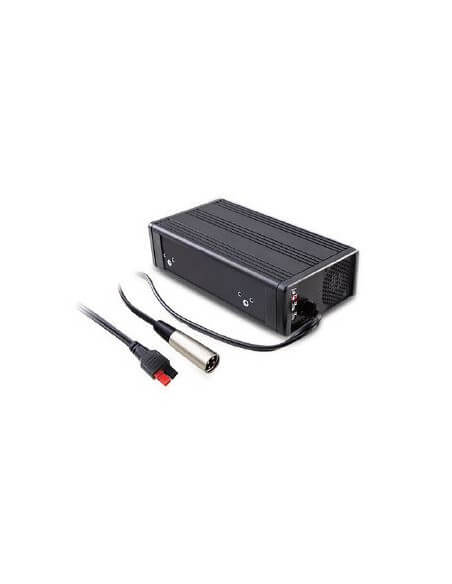

Mean Well 12V 20A 360W Battery Charger

The Mean Well 12V 20A 360W Battery Charger is designed for efficient and reliable charging of various battery types, ensuring optimal performance with advanced safety features. It provides a robust solution for users requiring high-quality power supplies for their battery management systems.

Features

• High Efficiency: Operates at an efficiency of approximately 85%, ensuring minimal energy loss during charging.
• Wide Voltage Range: Capable of charging batteries with a voltage range of 13V to 14.7V, making it suitable for various applications.
• Multiple Protection Features: Includes over-temperature protection, short circuit protection, and reverse polarity protection for enhanced safety.
• User-Friendly Design: Comes with an easy-to-read LED indicator for charge status, allowing for convenient monitoring.
• Compact and Lightweight: Designed with dimensions of 253mm x 135mm x 48.5mm and a weight of 1.5kg, facilitating easy installation and portability.

Specifications

• Output Voltage: 14.4V (Boost), 13.6V (Float)
• Output Current: 24.3A
• Input Voltage: 90 ~ 132VAC / 180 ~ 264VAC
• Frequency Range: 47 ~ 63Hz
• Working Temperature: -20°C to +60°C
• Dimensions: 253mm (L) x 135mm (W) x 48.5mm (H)
• Weight: 1.5kg
• MTBF: 253,000 hours (min)
