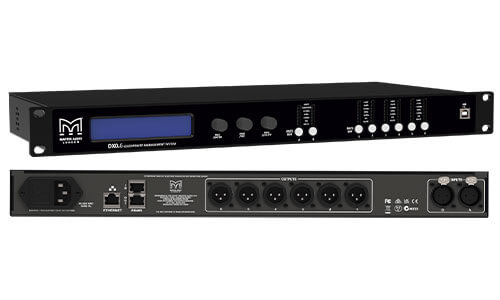

Martin Audio DX06 - 2-In x 6-Out Loudspeaker Management System

The Martin Audio DX06 is a professional 2-input, 6-output network system controller designed for comprehensive loudspeaker system control and protection. It offers advanced DSP processing capabilities, ensuring optimal sound quality and flexibility for both live and installed sound applications.

Features

• Professional 2-input, 6-output system processor for a wide range of system applications.
• Comprehensive processing options including EQ, noise gate, delay, and limiting to optimize and protect your audio system.
• Fully assignable matrix routing of both inputs to any output with attenuation options on each routing node.
• Two balanced XLR inputs with up to 12dB of gain, polarity invert, 600ms of delay, and 10-band parametric EQ with 14 selectable filter types.
• Six balanced XLR outputs with 12dB of gain, polarity invert, 200ms delay, and high/low pass filters with cut-off slopes from -6dB/octave to -48dB/octave using Bessel, Butterworth, or Linkwitz-Riley filters.
• Eight-band parametric EQ with 14 filter types and independent program and peak limiters.
• User-friendly front panel controls and LCD display with an intuitive menu system for easy adjustments.
• Front panel USB port for quick and easy PC connection.
• Networking options available via Ethernet or RS485 for larger systems.
• 32 user presets to store system configurations.
• Compact 1U rack design, making it suitable for a variety of installations.

Specifications

• Input Impedance: 20k Ohm balanced
• Output Impedance: 100Ω
• Max Input Level: +20dBu
• Max Output Level: +18dBu
• Crosstalk: < -95dB
• Sample Rate: 96kHz
• Signal to Noise Ratio: >113dB (A weighted)
• Noise Floor: < -94dB (A weighted)
• Common Mode Rejection Ratio: 60dB
• Frequency Response: 20Hz - 40kHz +0.3dB
• Input A/D Dynamic Range: 118dB
• Output D/A Dynamic Range: 118dB
• Total Harmonic Distortion (THD) at +4dBu 1kHz: <0.003%
• Mains Voltage Range: 85-230VAC 50-60Hz
• Nominal Power Consumption: 30W
• Audio Inputs: 2 x 3 pin female XLR
• Audio Outputs: 6 x 3 pin male XLR
• Ethernet: Shielded RJ45, dynamic or static IP
• RS485: 2 x RJ45
• USB: 1 x USB B (Front Panel)
• Mains: 3 pin IEC
