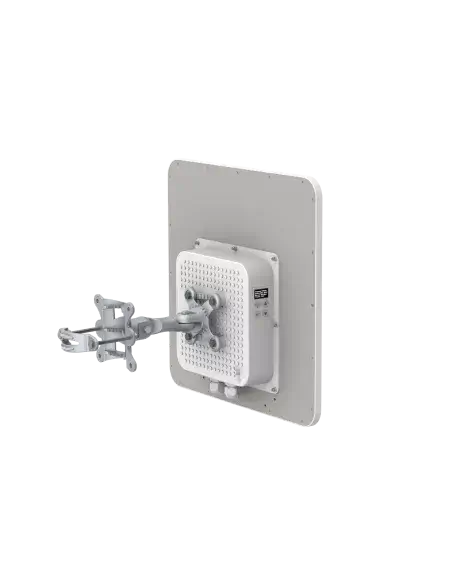

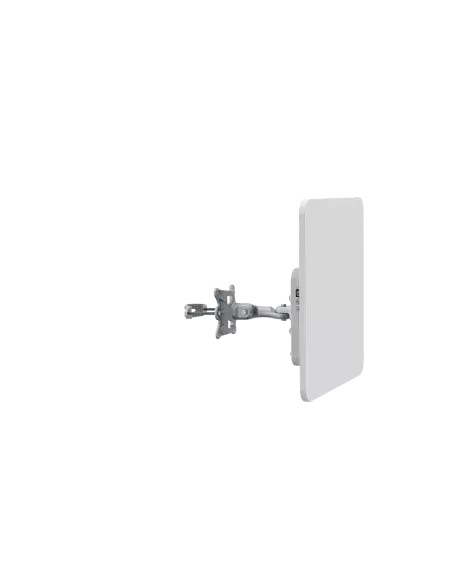

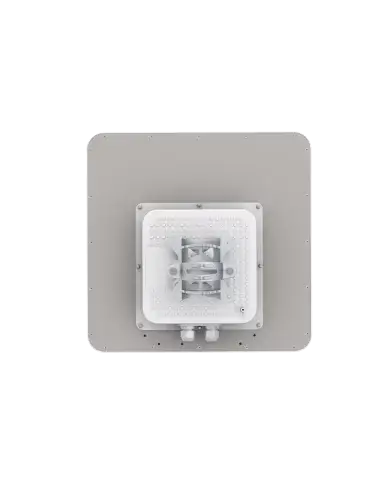

LigoWave PTP UNITY 23dBi Integrated Antenna

The LigoWave PTP UNITY with a 23dBi Integrated Antenna is a high-performance wireless device designed for reliable point-to-point (PTP) connections. It features advanced technology for enhanced throughput and packet processing, making it ideal for short to mid-range applications.

Features

• High Capacity: Supports up to 220 Mbps throughput and 140,000 packets per second.
• Integrated Antenna: Comes with a powerful 23dBi directional panel antenna for improved signal strength.
• Weatherproof Design: IP-67 rated enclosure ensures durability in harsh weather conditions.
• Advanced QoS: Wire speed Quality of Service (QoS) for prioritizing real-time data.
• Link Bonding: Integrated link bonding option to double capacity up to 400+ Mbps.
• User-Friendly OS: LigoWave OS with features including spectrum analyzer and antenna alignment tools.
• Surge Protection: Integrated surge protection compliant with IEC standards for added reliability.

Specifications

• Frequency Range: 4.780 – 6.100 GHz
• Output Power: 28 dBm (per chain)
• Ethernet Ports: 2 GE ports
• Power Supply: 48V PoE adapter included
• Mounting: Professional articulating mounting bracket
• Weight: 25 lbs
• Warranty: 2 Years
• Dimensions: 335 mm x 335 mm x 90 mm
