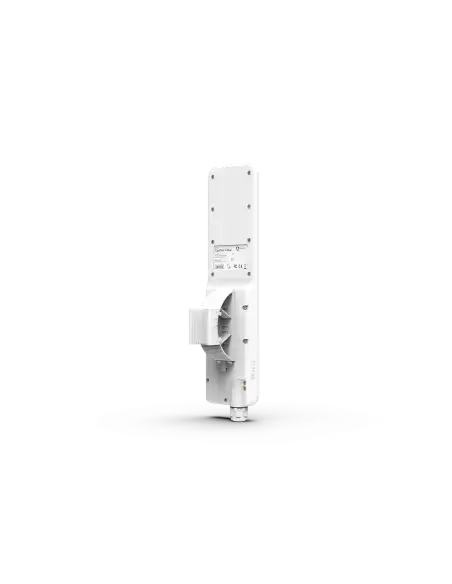

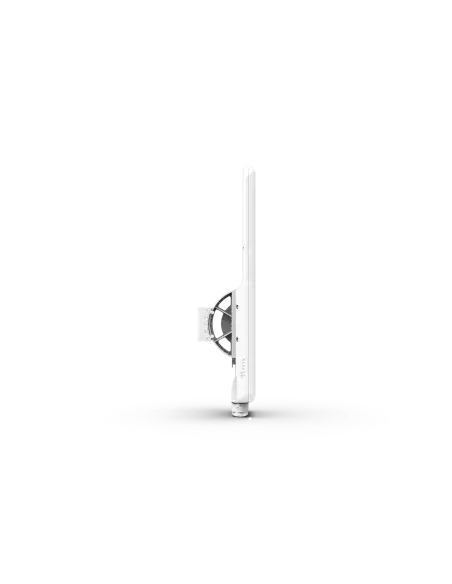

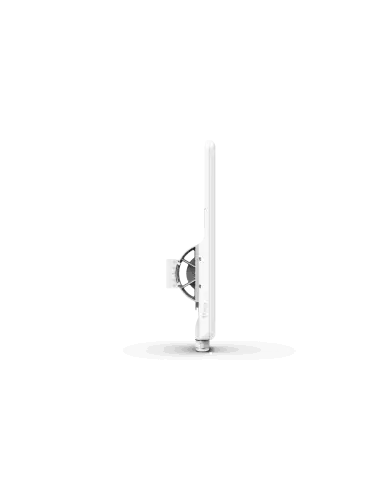

LigoWave DLB AC Base Station, 90° Sector Antenna

The LigoWave DLB AC Base Station with a 90° Sector Antenna is designed for efficient Point-to-Multipoint (PTMP) connectivity, delivering robust performance for various applications including internet access, video surveillance, and rural connectivity. Its innovative features and compact design make it a reliable choice for network expansion.

Features

• High Throughput: Achieves over 500 Mbps of throughput with advanced 802.11ac technology and iPoll proprietary protocol.
• Integrated Antenna: Comes with an 18 dBi dual-polarized 90° sector antenna, providing excellent coverage and signal strength.
• Weather Resistant: IP66-rated enclosure ensures durability and protection against harsh environmental conditions.
• Easy Installation: Features an innovative mounting bracket for quick and easy pole mounting.
• Efficient Performance: Equipped with a 750MHz QCA 9563 CPU, QCA 9882 radio, and 64MB RAM/16MB Flash Memory for enhanced operational efficiency.
• Backward Compatible: Supports previous DLB devices using iPoll, facilitating seamless network upgrades.

Specifications

• Frequency Range: 5.150 - 5.850 GHz
• Capacity: 80,000 PPS
• Max Output Power: 29 dBm
• Radio: QCA 9882
• CPU: QCA 9563
• RAM: 64 MB
• Flash Memory: 16 MB
• Operating Temperature: -40°C to +70°C
• Mounting Options: Wall and pole mounting
