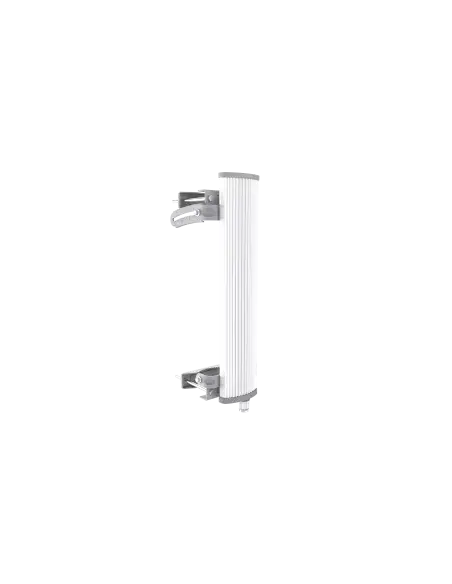

LigoWave DLB 5GHz 17dBi Base Station - 90° Sector Antenna

The LigoWave DLB 5GHz 17dBi Base Station with a 90° sector antenna is designed for short-to-mid range PTP/PTMP scenarios, providing robust performance with its high output power and integrated advanced features for reliable wireless connectivity.

Features

• Integrated 90° Sector Antenna: Offers a dual-polarized design with 17 dBi gain for enhanced coverage and performance.
• High Output Power: Capable of up to 30 dBm output power (country dependent) for extended transmission range.
• Advanced iPoll 3 Protocol: Proprietary technology designed to eliminate transmission congestion and interference in PTMP installations.
• IP-67 Rated Enclosure: Ensures protection against dust and water, making it suitable for deployment in harsh environments.
• Powerful Hardware: Equipped with a dedicated 720 MHz CPU and 128 MB of Flash and RAM for efficient operation.
• Gigabit Ethernet Port: Supports high-speed data transfer for optimal network performance.

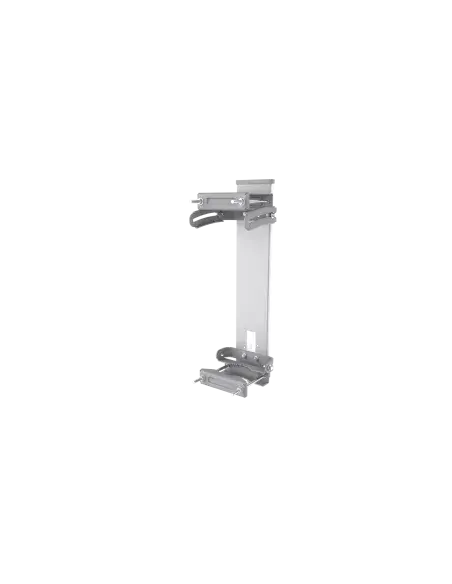

• Mounting Flexibility: Comes with a professional mounting bracket allowing for a 15° down-tilt for precise antenna alignment.

Specifications

• Frequency Range: 5.150 - 5.850 GHz (FCC compliant)
• Capacity: Up to 170 Mbps
• Power Supply: 37 - 56 VDC PoE 802.3af (AC to DC adapter included)
• Dimensions: 400mm (length) x 200mm (width) x 80mm (height)
• Weight: 2.5 kg
• Warranty: 2 years
