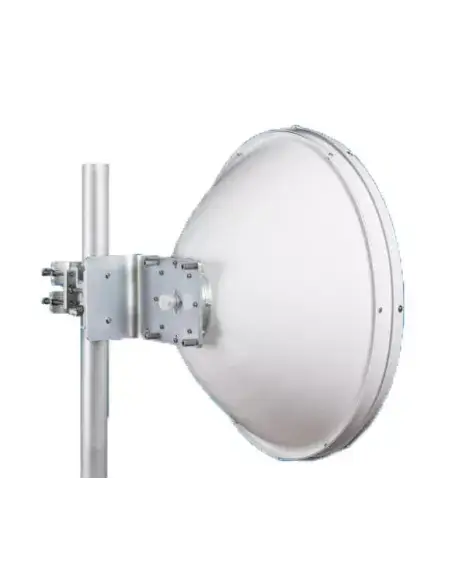

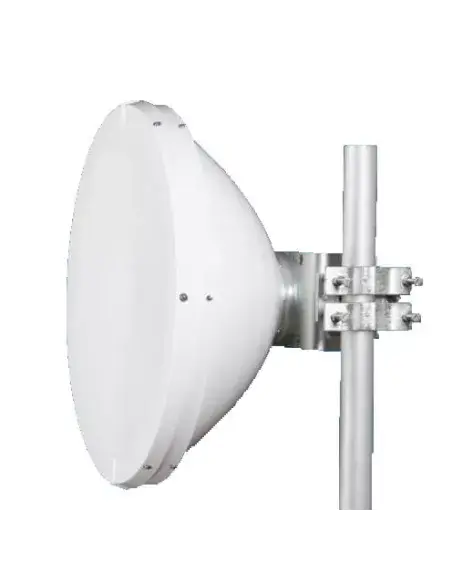

Jirous 680mm Parabolic Antenna, 34.1dBi, 10-12GHz

The Jirous 680mm Parabolic Antenna is specifically designed for high-performance backhaul connections in the 10-12 GHz frequency range. With a gain of 34.1 dBi, this antenna is ideal for ensuring robust and reliable wireless communication, particularly for Mimosa B11 backhaul radio systems.

Features

• High Gain: Achieves a gain of 34.1 ± 1 dBi for enhanced signal strength.
• Wide Frequency Range: Operates effectively within the 10.0 - 12 GHz range.
• Durable Construction: Made from aluminum alloy with a powder-coated finish for longevity.
• Optimized Beamwidth: Features a beamwidth of 3.0° ± 0.5° for focused signal transmission.
• High Front-to-Back Ratio: Provides ≥61 dB for excellent isolation from unwanted signals.
• Easy Installation: Compatible with mast diameters of 40 - 120 mm, allowing for versatile mounting options.
• Weather Resistant: Built to withstand operating wind loads of up to 180 km/h and survival wind loads of 240 km/h.

Specifications

• Frequency Range: 10.0 - 12 GHz
• Gain Low Band: 34.1 ± 1 dBi
• Gain High Band: 36.0 ± 1 dBi
• Beamwidth -3 dB: 3.0° ± 0.5°
• Return Loss: ≥ 18 dB (10.3 - 11.7 GHz)
• Front to Back Ratio: ≥ 61 dB
• Polarization: Linear - horizontal and vertical (depends on installation)
• Parabola Diameter: 680 mm
• Connection Type: Waveguide ø 19 mm
• Operating Wind Load: Max. 180 km/h
• Survival Wind Load: Max. 240 km/h
