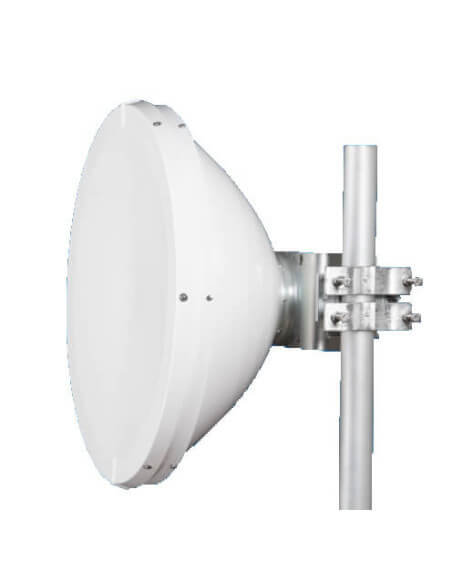

Jirous 38cm 10/11GHz Parabolic Dish Antenna

The Jirous 38cm 10/11GHz Parabolic Dish Antenna is engineered for exceptional performance with Ubiquiti AirFiber 11 systems. This antenna provides a high gain of 28.3 dBi and operates within a frequency range of 10.1 to 10.7 GHz, making it ideal for both short and long-distance wireless communication.

Features

• High Gain: Achieves a gain of 28.3 dBi for improved signal strength and range.
• Wide Frequency Range: Operates between 10.1 GHz and 10.7 GHz, suitable for various applications.
• Durable Construction: Made from aluminum alloy with a UV-resistant radome cover for longevity in outdoor environments.
• Easy Installation: Compatible with mounting on poles ranging from 27mm to 74mm in diameter.
• Versatile Polarization: Supports horizontal and vertical polarization options by mounting.

Specifications

• Frequency Range: 10.1 - 10.7 GHz
• Gain: 28.3 dBi
• VSWR: ≤ 1.3
• Beamwidth -3dB: 6°
• Polarization: By mounting - 2x 45° or horizontal and vertical
• Connection: Waveguide ø 19.5 mm - PowerBridge M10 compatible
• Parabola Diameter: 38 cm
• Radome Material: UV resistant plastic ABS
• Installation on Mast: ø 27 - 74 mm
