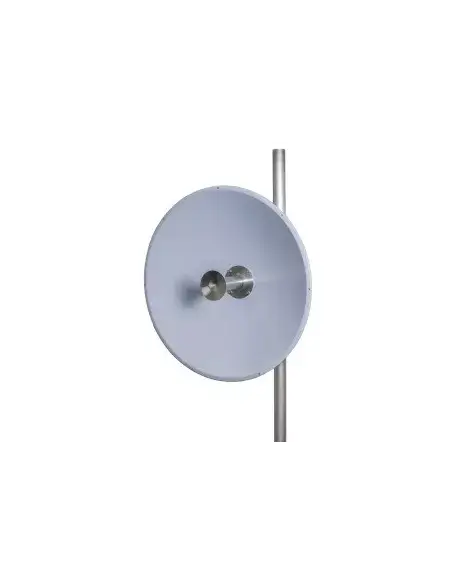

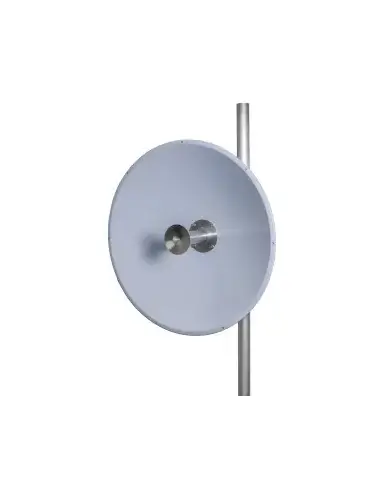

IT Elite 5GHz Parabolic Dish Antenna - 28dBi, N-Type

The IT Elite 5GHz Parabolic Dish Antenna is designed for high-performance wireless communication, offering a remarkable gain of 28 dBi. It operates within the 5.1 to 5.9 GHz frequency range, making it ideal for point-to-point applications in challenging environments. With a narrow beamwidth of only 5 degrees, this antenna ensures focused signal transmission, enhancing connectivity and reducing interference.

Features

• High Gain: Achieves a gain of 28 dBi for superior signal strength.
• Wide Frequency Range: Operates between 5.1 to 5.9 GHz, accommodating various wireless applications.
• Narrow Beamwidth: 5-degree beamwidth allows for precise signal targeting.
• Dual Polarization: Supports horizontal and vertical polarization for flexible installation options.
• Robust Construction: Includes a radome cover for protection against environmental factors.
• Easy Installation: Comes with a standard bracket for straightforward mounting.
• Lightning Protection: Designed with DC grounding for safety against electrical surges.

Specifications

• Frequency Range: 5.1 to 5.9 GHz
• Gain: 28 dBi
• Vertical Beamwidth: 5 degrees
• Horizontal Beamwidth: 5 degrees
• Polarization: Dual (H+V), Cross Polarization
• Impedance: 50 Ohms
• Connector Type: 2 x N-Type Female
• Material: UV protected PVC (cover)
• Dimensions: 630 x 310 mm
• Operating Temperature: -40 to 80 degrees Celsius
• Wind Load: 100/140 km/h
• Isolation: 40 dB
