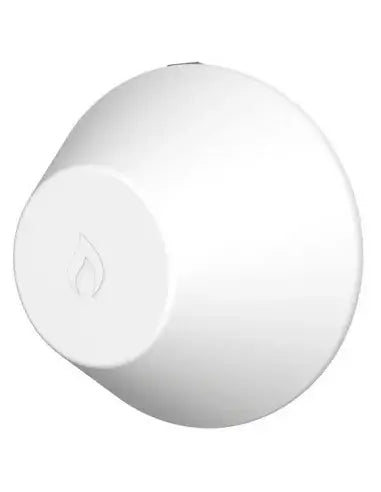

IgniteNet MetroLinq 60GHz Radio - 2.5Gbps

The IgniteNet MetroLinq 60GHz Radio offers a high-capacity, cost-effective solution for point-to-point (PTP) wireless communication, delivering up to 2.5 Gbps speeds. With its license-free operation in most markets, it ensures quick deployment and minimal interference, making it ideal for various applications including fixed wireless access and backhaul connections.

Features

• High Capacity: Supports up to 2.5 Gbps for demanding applications.
• License-Free Operation: Eliminates the need for spectrum licenses in most regions, facilitating rapid deployment.
• Dual Band Functionality: Includes a secondary 5GHz radio for failover, ensuring uninterrupted service.
• Narrow Beamwidth: Provides enhanced security and reduced interference for point-to-point connections.
• Robust Design: IP55 rated enclosure withstands harsh environmental conditions.
• Cloud Management: Features ECCloud for remote monitoring and management of up to 50 devices.
• Integrated Accessories: Comes with tools like alignment scopes and Bluetooth modules for easier installation.

Specifications

• Operating Frequency: 60GHz and 5GHz
• Maximum Throughput: 2.5 Gbps
• Antenna Gain: 36dBi (60GHz) and 16dBi (5GHz)
• Operating Temperature: -30 to 55 °C
• Dimensions: 350 x 350 x 200 mm (ML2.5-60-35) / 190 x 190 x 120 mm (ML2.5-60-19)
• Weight: 2.8 kg (ML2.5-60-35) / 1.25 kg (ML2.5-60-19)
• Power Supply: 24-48V PoE or DC
• Power Consumption: 24W max
• Encryption: 128-bit AES
