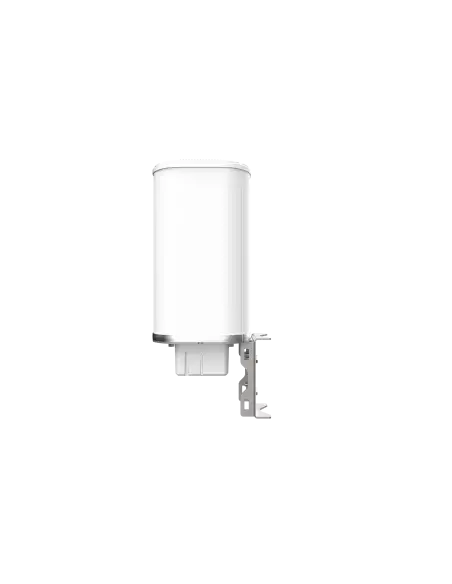

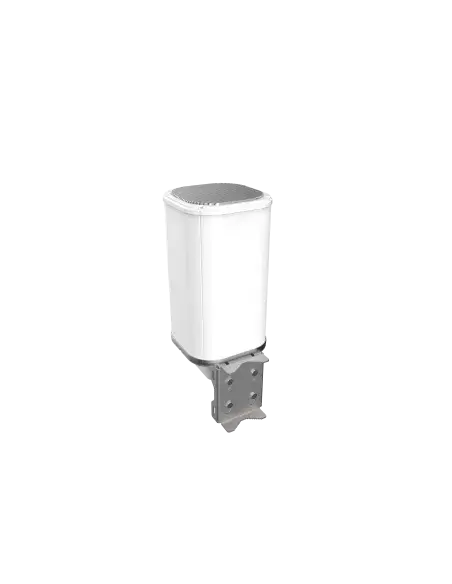

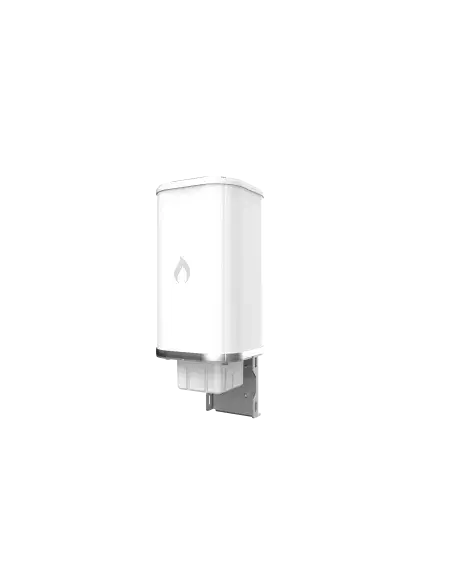

The IgniteNet MetroLinq 10G Tri-band Omni is a groundbreaking PTMP base station designed for high-performance, interference-free connections. With support for 60GHz, 5GHz, and 2.4GHz frequencies, it delivers fiber-like speeds of up to 10Gbps, making it ideal for service providers and enterprise networks.

Features

• Tri-band Flexibility: Operates on 60GHz, 5GHz, and 2.4GHz bands for versatile connectivity.
• High Performance: Achieves data rates up to 10Gbps with a total OTA capacity of 16.4Gbps.
• License-free Operation: Facilitates quick deployment without the need for spectrum licenses in most markets.
• Advanced Beamforming: Three 120° 60GHz beamforming sectors enable high-capacity connections.
• Integrated Access: Built-in 5GHz and 2.4GHz radios provide additional access for Wi-Fi clients and failover capabilities.
• Robust Security: Features 128-bit AES encryption for secure communications.
• Cloud Management: Supports ECCloud for remote monitoring and management of up to 50 devices.

Specifications

• Model: ML-60-10G-360-EU
• Frequency Bands: 60GHz (3 x 120°), 5GHz (360°), 2.4GHz (360°)
• Max Throughput: 10Gbps
• OTA Capacity: 16.4Gbps
• Ethernet Ports: 1 x 10G SFP+, 1 x 1G Ethernet with PoE support
• Power Supply: DC terminal block
• Encryption: 128-bit AES
• Operating System: Advanced OS for point-to-point communication
