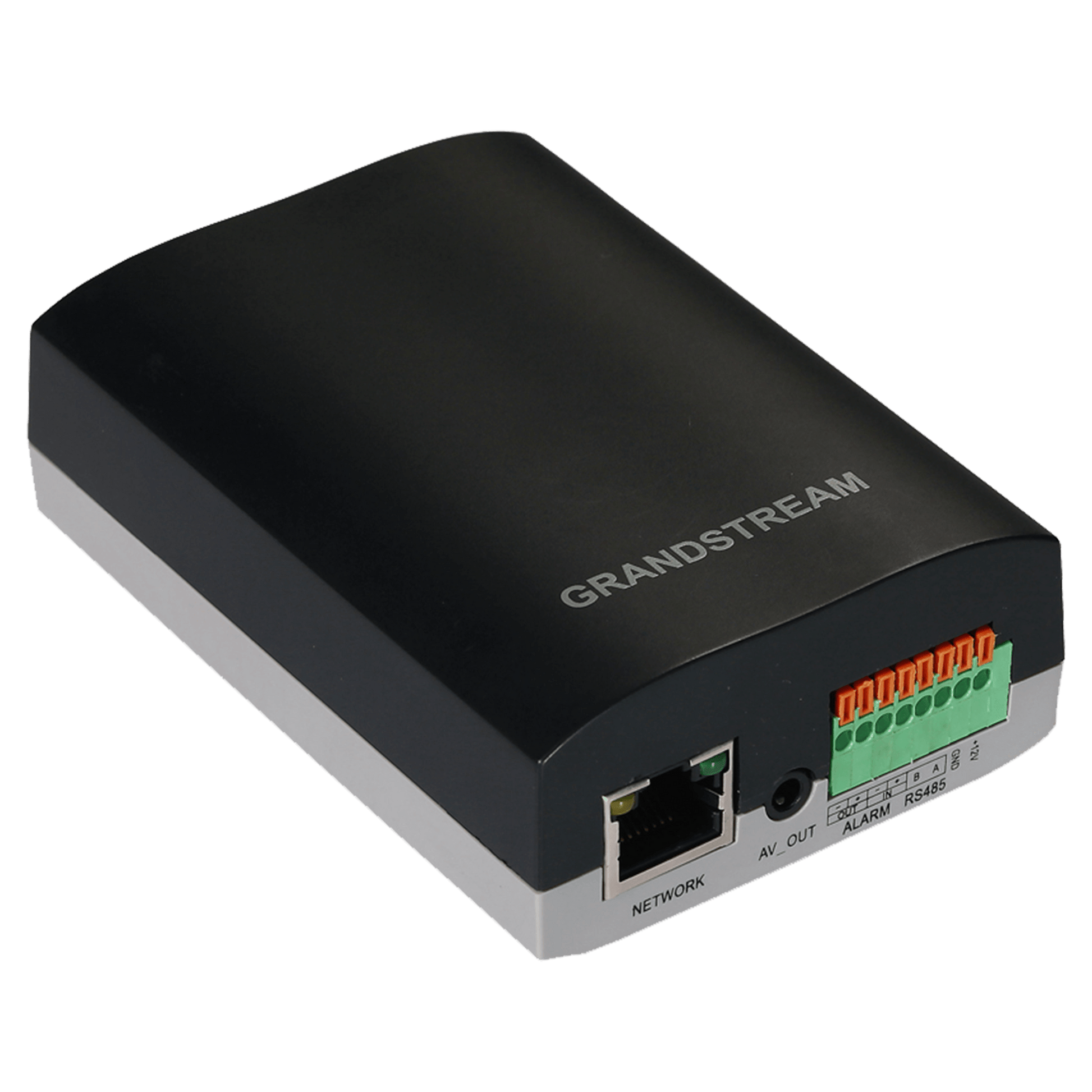

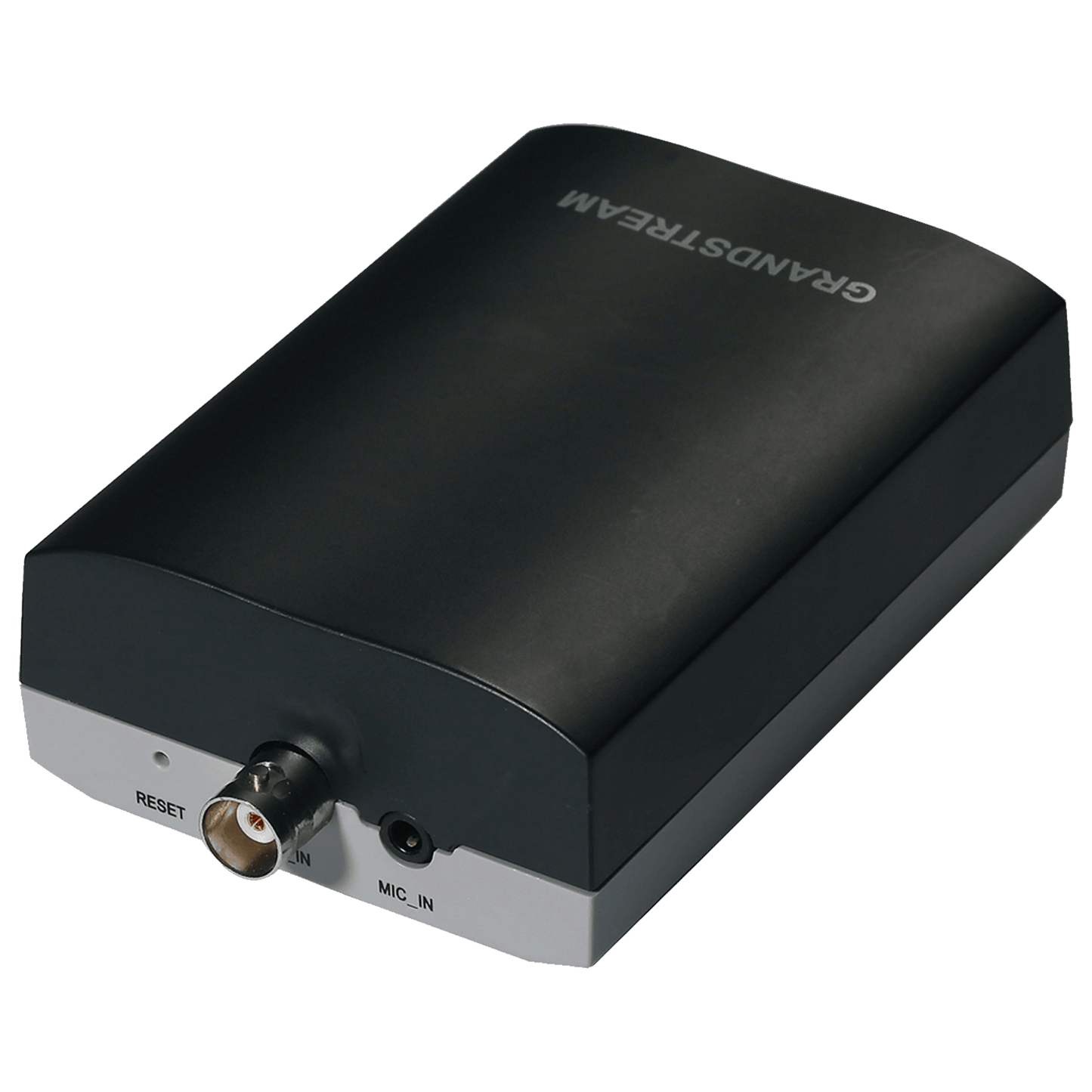

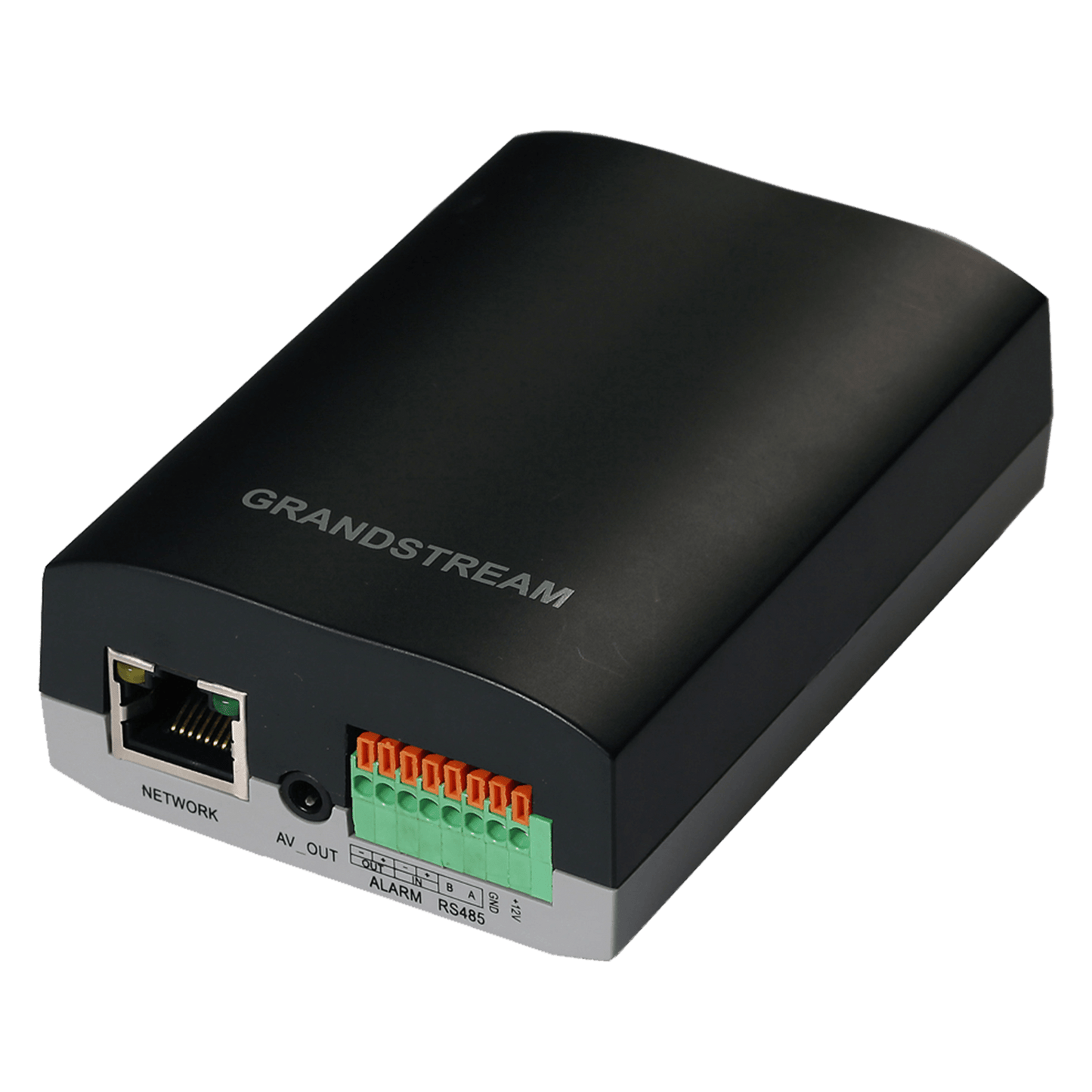

Grandstream IP Video Encoder/Decoder

The Grandstream GXV3500 is a versatile IP video encoder and decoder that combines powerful functionality with advanced features, making it an essential component for modern surveillance systems. It allows seamless integration of analog and IP cameras, providing flexibility in video streaming and monitoring.

Features

• 3-in-1 Device: Functions as an IP video encoder, decoder, and built-in public announcement system.
• H.264 Real-Time Video Compression: Supports high-quality video encoding and decoding for both analog and IP streams.
• Power over Ethernet (PoE): Simplifies installation by allowing power and data to be transmitted over a single cable.
• Two-Way SIP/VoIP Support: Enables audio and video streaming to mobile phones and video phones.
• Advanced Security Features: Includes HTTPS support, password protection, and on-screen display for enhanced security.
• Flexible Integration: Compatible with various third-party cameras and systems, allowing for customized surveillance solutions.
• Embedded Analytics: Features motion detection capabilities for improved monitoring and security.
• Alarm Integration: Supports alarm input/output for enhanced surveillance capabilities.

Specifications

• Video Compression (Encoder): H.264, MJPEG, JPEG
• Video Decompression (Decode): H.264 ONLY
• Max Video Resolution (Encoding): 704×480@30fps (NTSC); 704×576@25fps (PAL)
• Max Video Resolution (Decoding): 720×480@30fps (NTSC); 720×576@25fps (PAL)
• Audio Compression: G.711 a/u (PCMA, PCMU)
• Dimensions: 67mm x 34mm x 96mm
• Weight: 121g
• Operating Temperature: 0°C ~ +45°C (32°F ~ 113°F)
• Storage Temperature: -20°C ~ +60°C (-4°F ~ 140°F)
• Power Adapter: Output 12VDC/0.5A; Input 100–240VAC, 50–60Hz
• Network Protocols: TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, NTP
