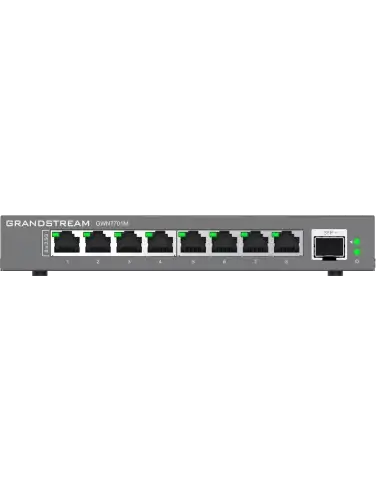

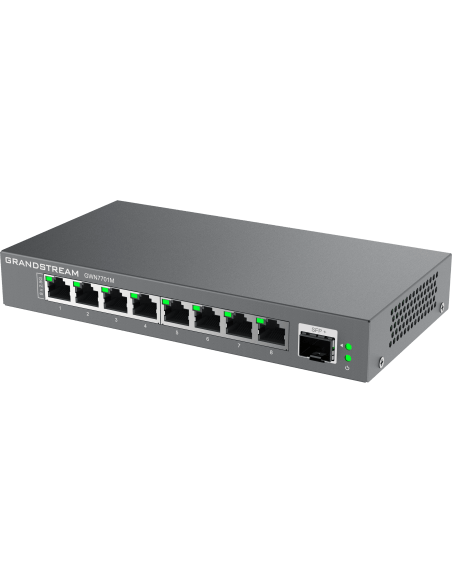

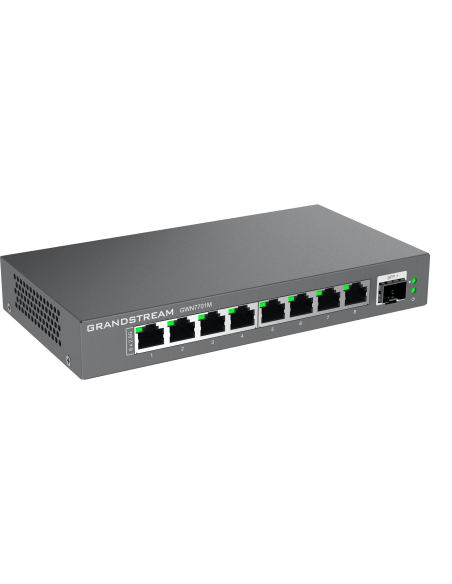

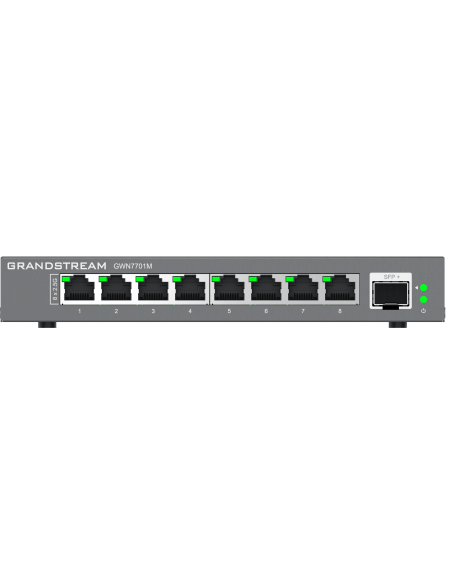

Grandstream GWN7701M 8-Port Unmanaged 2.5G Switch

The Grandstream GWN7701M is an 8-port unmanaged network switch designed for high-speed connectivity in home offices and small-to-medium businesses. With support for multi-Gigabit speeds up to 2.5Gbps, it simplifies network expansion without the need for complex configurations.

Features

• High-Speed Connectivity: Supports 8 multi-Gigabit RJ45 ports for 100/1000/2500Mbps connections.
• Plug-and-Play Design: No configuration required, allowing for immediate deployment.
• Auto MDI/MDIX: Eliminates the need for crossover cables, simplifying installation.
• SFP+ Fiber Port: Includes one SFP+ port for 1 Gigabit or 10-Gigabit uplink connectivity.
• Fanless Operation: Whisper-quiet design ensures minimal noise in any environment.
• Green Technology: Reduces power consumption, making it environmentally friendly.
• Traffic Monitoring: Features broadcast/multicast/unicast storm control to manage traffic levels.

Specifications

• Ports: 8× 100/1000/2500Mbps RJ45 Ports, 1× SFP+ Fiber Port
• Switching Capacity: 60Gbps
• Jumbo Frame: 9KB

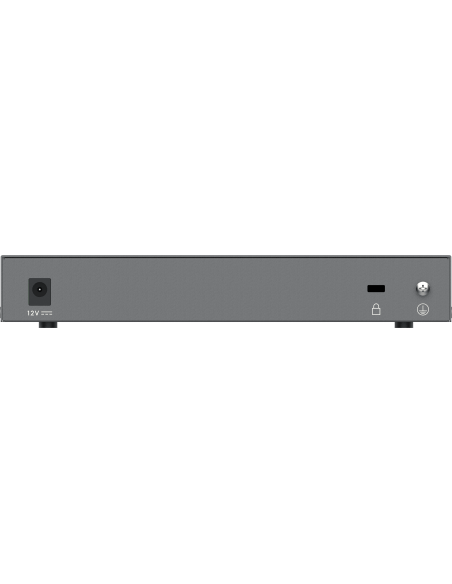

• Power Adapter: External 12VDC/1A
• Max Power Consumption: 9.7W
• Operating Temperature: 0 to 40 °C (32 to 104 °F)
• Storage Temperature: -20 to 60 °C (-4 to 140 °F)
• Dimensions: 190 x 100 x 28mm
• Weight: 0.52kg
• Compliance: FCC, CE, RCM, IC, UKCA
