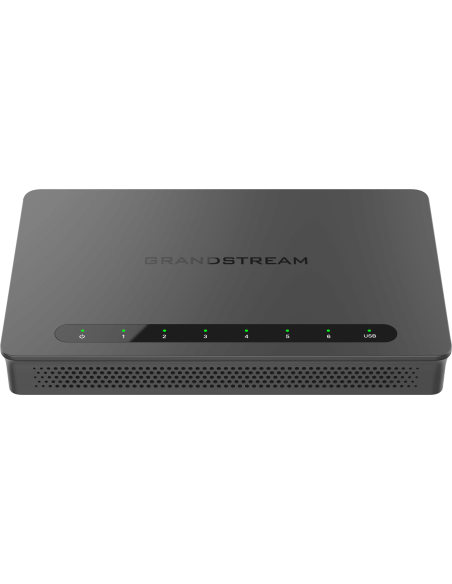

Grandstream GWN7002 VPN Router & Firewall, 4 GbE LAN/WAN

The Grandstream GWN7002 is a high-performance Multi-WAN Gigabit VPN router and firewall designed to create comprehensive wired, wireless, and VPN networks for businesses of all sizes. With advanced security features and easy management options, it ensures reliable connectivity and robust protection for your network.

Features

• Multi-WAN Support: Allows the configuration of multiple WAN connections for load balancing and failover, ensuring maximum uptime and reliability.
• Built-in Firewall: Provides advanced security features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT, and ALG.
• VPN Support: Supports SSL VPN, IPsec VPN, PPTP, and L2TP protocols for secure remote access and site-to-site connectivity.
• High Performance: Offers NAT routing performance of up to 2.2Gbps and IPSec VPN throughput of 530Mbps.
• Centralized Management: Easily manage the router and connected devices using GWN.Cloud or GWN Manager for real-time monitoring and configuration.
• Power over Ethernet (PoE): Features 2 PoE output ports, allowing the router to power connected devices directly.
• Traffic Management: Advanced QoS features prioritize VoIP traffic and manage bandwidth effectively to ensure optimal performance.
• User-Friendly Interface: The intuitive web GUI and embedded controller make configuration and management straightforward.

Specifications

• CPU: Dual ARM Cortex A53 1GHz
• Memory: 256MB RAM, 256MB Flash, supports up to 30K NAT sessions

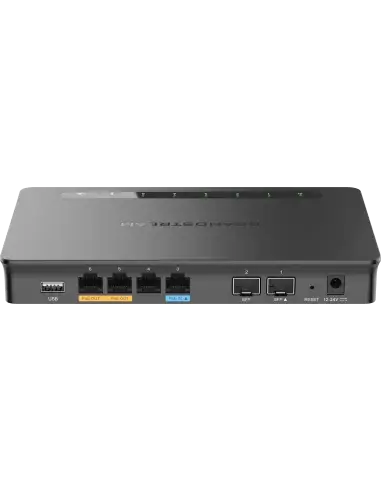

• Network Interfaces: 4x Gigabit Ethernet ports (WAN/LAN configurable), 2x 2.5 Gigabit SFP ports
• Max Concurrent VPN Tunnels: Up to 50 tunnels
• Environmental: Operating temperature from 0°C to 40°C, storage temperature from -30°C to 60°C, humidity 10% to 90% non-condensing
• Dimensions: 210mm (L) x 130mm (W) x 35mm (H)
• Weight: 505g
• Power Supply: 24V DC 1A
• Compliance: FCC, CE, RCM, UC, UKCA
