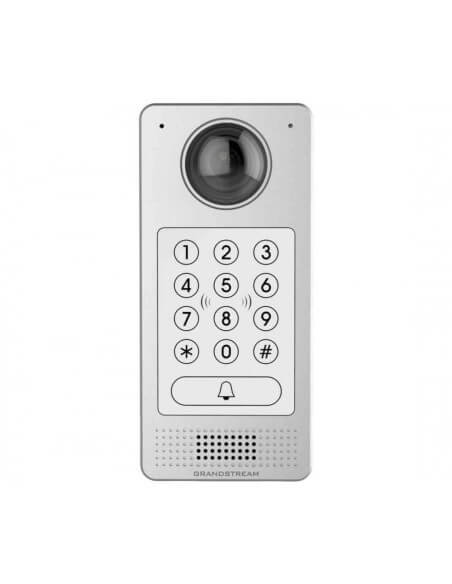

Grandstream GDS3710 SIP Doorphone Intercom - 2MP Camera, RF Reader

The Grandstream GDS3710 is a versatile IP video door system that combines high-definition surveillance with intercom functionality. It features a 2MP camera with a 180-degree viewing angle, enabling comprehensive monitoring and secure access control for various facilities.

Features

• High-Definition Video: Equipped with a 2 Megapixel progressive scan CMOS sensor for clear video quality.
• Wide Viewing Angle: 180-degree hemispheric lens for wall-to-wall coverage without blind spots.
• Integrated RFID Reader: Supports keyless entry with a built-in RFID chip reader, enhancing security.
• Intercom Functionality: Built-in microphone and speaker for seamless two-way audio communication.
• Alarm Integration: Features alarm-in and alarm-out support for integration with existing security systems.
• Weatherproof Design: Constructed with a metal casing to withstand harsh environmental conditions, making it vandal-resistant.
• Multiple Streaming Options: SIP video streaming to NVRs, video intercom stations, IP phones, or smartphones simultaneously.
• Power over Ethernet (PoE): Simplifies installation with PoE support for both power and network connection.

Specifications

• Video Compression: H.264 High Profile / Main Profile / Base Profile, Motion JPEG
• Image Sensor Resolution: 1920H x 1080V (2 Megapixel)
• Lens Type: 1/2”, F2.5, FOV: 180°(W) x 150°(H)
• Day & Night Mode: White LEDs with smart brightness control
• Max Frame Rate: 30 frames per second
• Minimum Illumination: 0.5 Lux
• Alarm Input: 2 channels, Vin < 15V for door sensors or other devices
• Alarm Output: 2 channels, 125VAC/0.5A, 30VDC/2A
• Network Interface: 10M/100M auto-sensing
• Power Supply: PoE (IEEE 802.3af) or 12VDC/1A
• Dimensions: 173mm(H) x 80mm(W) x 36mm(D)
• Weight: 0.6 Kg
• Operating Temperature: -30°C to 60°C
• Ingress Protection: IP66 (weatherproof)
