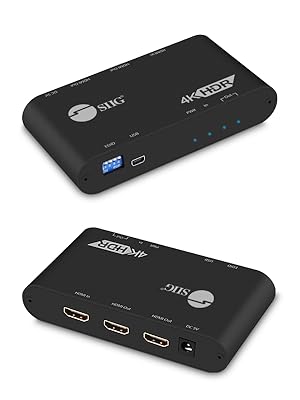

FILO 4K HDMI 1x2 Splitter with Auto EDID and Cascading Support

The FILO CAVHDS1X2 HDMI 4K 1x2 Splitter is designed to distribute HDMI video and audio signals from a single source to two HDMI displays simultaneously, maintaining high signal quality. It supports 4K resolution at 60Hz with HDR, making it an ideal choice for gaming, home theater systems, and professional presentations. With advanced features like auto video scaling and intelligent EDID management, this splitter ensures compatibility across various devices and resolutions.

Features

• 4K Resolution Support: Distributes HDMI signals up to 4K@60Hz (YUV 4:4:4 8-bit) and HDR (YUV 4:2:0 10-bit).
• Auto Video Scaling: Automatically adjusts video resolution for optimal display compatibility.
• Cascading Capability: Supports cascading of multiple splitters for up to 10 layers of displays.
• Intelligent EDID Management: Embedded EDID and learning via DIP switches for enhanced compatibility.
• Mixed Resolution Output: Allows simultaneous output of 4K to one display and 1080p to another.
• Wide Compatibility: Works with HDMI source devices including computers, gaming consoles, Blu-ray players, and more.

Specifications

• Input: 1x HDMI Type A Female
• Outputs: 2x HDMI Type A Female
• Maximum Resolution: 3840x2160 @60Hz (YUV 4:4:4) and HDR 3840x2160 @60Hz (YUV 4:2:0)
• Video Bandwidth: 18Gbps (single-link 600MHz)
• Operating Temperature: 0 to 40 degrees C
• Storage Temperature: -20 to 60 degrees C
• Power Supply: Input 100-240VAC, Output 5VDC, 2A
• Weight: 0.34 lbs (0.15 kg)
• Dimensions: 120mm (L) x 23mm (H) x 62mm (W)
