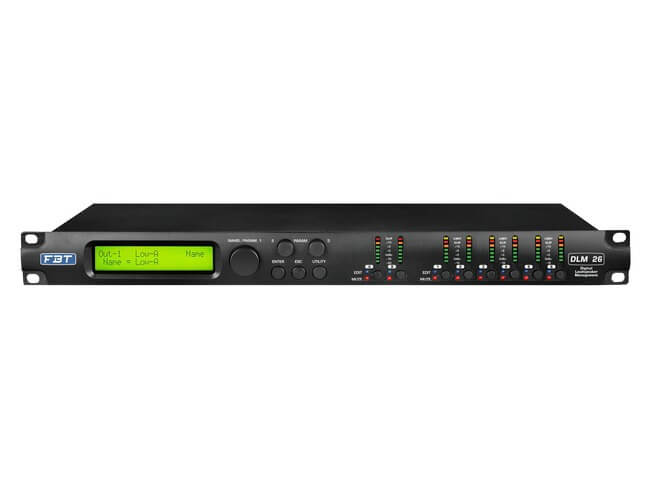

FBT DLM-26 Digital Speaker Management System

The FBT DLM-26 is a high-performance DSP-based 2 input x 6 output digital loudspeaker management processor, perfect for fixed installations and live events. Combining multiple conventional product functions into a compact 1U unit, it offers extensive PC remote control capabilities and superb audio quality with premium 24-bit A/D and D/A converters. The DLM-26 ensures a dynamic range greater than 110db and provides versatile configuration options with STANDARD and DCL modes, making it an ideal choice for professional sound management.

Features

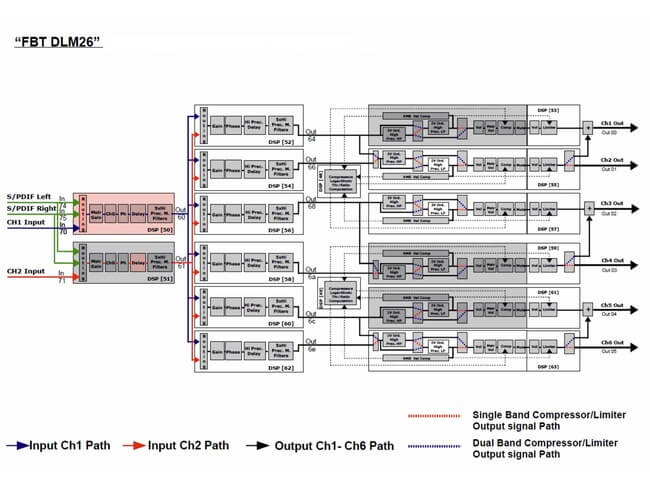

• DSP-based 2 input x 6 output digital loudspeaker management processor
• Premium hi-end AKM5392 24-bit A/D converters and AKM 4396 24-bit D/A converters
• Dynamic range greater than 110db
• STANDARD MODE: Configurable crossover in 2x2 way + SUB, 2x3 way, or 6 way
• DCL MODE: Configurable in 3ch DCL, 2ch DCL + 2ch standard, or 1ch DCL + 4ch standard
• Double compressor limiter (DCL) with assignable LO/HI split frequency
• 5 fully configurable filters per input
• 288.66ms max delay in steps of 6.8us per input
• 4 fully configurable filters per output
• 288.66ms max delay in steps of 6.8us per output
• Linking functions between inputs and outputs

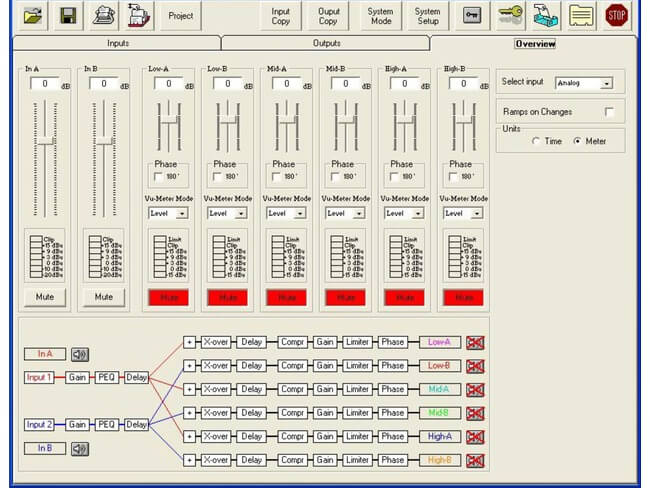

• PC software for remote control via RS485 or USB, allowing network connection of up to 32 units
• 64 memories with security lockout and two password levels

Specifications

• Analog Inputs: 2
• Digital SPDIF Input: 1 (Stereo)
• Analog Outputs: 6
• Input Level Display: 6 level LED + 1 clip LED per input
• Output Level Display: 5 level LED + 1 clip LED + 1 limiter LED per output
• Crossover: LO-pass/Hi-pass from 6 to 24db/Oct with standard or custom Q
• Compressor: RMS compressor with soft knee
• Limiter: Peak limiter
• Delay: 288.66ms max in steps of 6.8us
• Control Interface: PC software via RS485 or USB
• Memory: Up to 64 memories with security lockout
