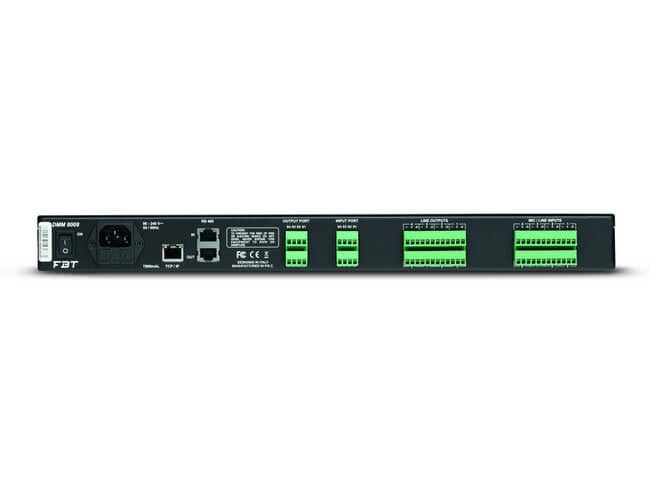

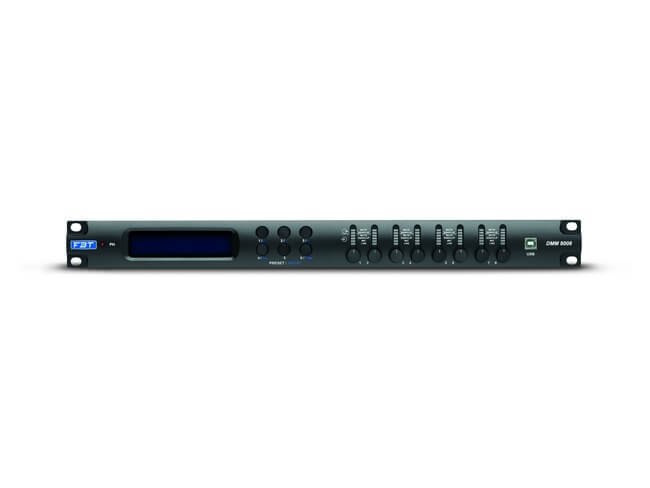

FBT AC DMM8008 Digital Matrix Mixer

The FBT AC DMM8008 Digital Matrix Mixer is a high-performance solution designed for commercial and professional applications. With its 8 input x 8 output configuration, this mixer is perfect for conference rooms, auditoriums, sports utility buildings, houses of worship, pubs, and discos. It features advanced DSP processing, comprehensive mixing capabilities, and user-friendly controls, making it an ideal choice for sound reinforcement needs.

Features

• 8 Input x 8 Output Configuration: Allows for flexible routing and mixing of audio signals.
• 48kHz 24 Bit DSP Engine: Ensures high-quality processing for superior sound performance.
• Independently Switchable Inputs: Supports 8 Line/Mic inputs with Phantom power supply for versatile connectivity.
• Full Matrix Mixing Mode: Inputs can be routed and mixed in any ratio to any output, providing complete control.
• Comprehensive Equalization: Each output includes up to 5-band parametric equalization, crossover filters, and more.
• Advanced Noise Gate and Feedback Eliminator: Features enhance clarity and reduce unwanted noise in live settings.
• Automixing Function: Simplifies operation by automatically adjusting input levels based on active microphones.
• User-Friendly Controls: Eight front knobs for quick gain adjustments, making it easy to manage sound levels.
• Digital In/Out Ports: Eight ports for preset recall and triggering of external devices.
• Software Management: Up to 32 units can be managed through software applications for extensive control.

Specifications

• Sampling Rate: 48kHz
• Bit Depth: 24 Bit
• AD/DA Converters: 24 Bit high-performance converters
• Input Channels: 8 (Line/Mic inputs with Phantom power)
• Output Channels: 8 (Line outputs)
• Parametric EQ: 3-band on each input, 5-band on each output
• Ducking Process: Enforces priority order for open microphones
• Dimensions: 482mm (W) x 44mm (H) x 350mm (D)
• Weight: 3.5kg
