FBT AC CM-601 Boundary Microphone

The FBT AC CM-601 Boundary Microphone is a high-quality electret boundary microphone designed for a variety of professional applications, including theatrical performances, discussions, conferences, and church services. With its semi-cardioid polar pattern and dual low cut filter, this microphone offers exceptional sound clarity and versatility. The robust diecast metal housing and shock-absorbing body ensure durability and reliability in any setting.

Features

• Electret Boundary Microphone: Ideal for theatrical performances, discussions, conferences, and churches.
• Semi-Cardioid Polar Pattern: Captures sound from the front while minimizing background noise.
• Dual Low Cut Filter: Configurable at 80 Hz and 120 Hz to reduce low-frequency noise.

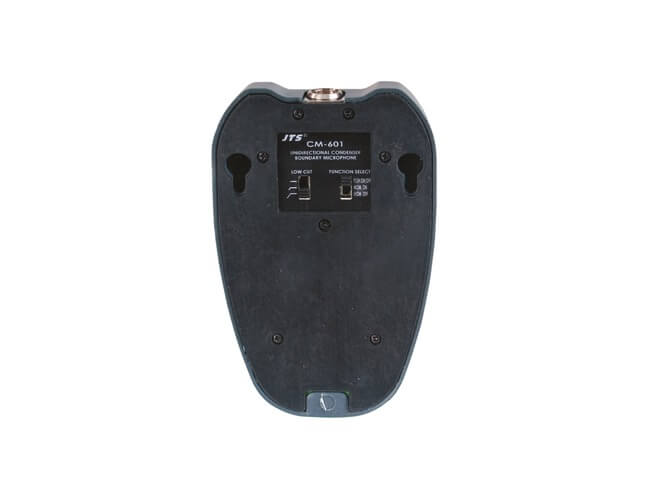

• Configurable Push-Button: Can be set to PTT (Push-to-Talk), PTM (Push-to-Mute), or switching function.
• Standby LED: Indicates the microphone's operational status.
• Shock-Absorbing Body: Minimizes structure-borne noise and impact sound.
• Elastic Cartridge Suspension: Prevents structure-borne noise and impact sound.
• 8 m Cable: Comes with a mini XLR jack to XLR plug for extended connectivity.
• Diecast Metal Housing: Ensures durability and longevity.

Specifications

• Transmission Method: Cable
• Polar Pattern: Semi-Cardioid
• System: Electret
• Audio Frequency Range: 30-12,000 Hz
• Nominal Impedance: 100 Ω
• Sensitivity: 2.2 mV/Pa
• Max. Sound Pressure: 125 dB
• Power Supply: DC 15-48 V, phantom power
• Housing Material: Diecast Metal
• Admissible Ambient Temperature: 0-40 °C
• Dimensions (W x H x D): 72.5 x 22 x 110 mm
• Weight: 0.269 kg
• Cable: 8 m, mini XLR/XLR

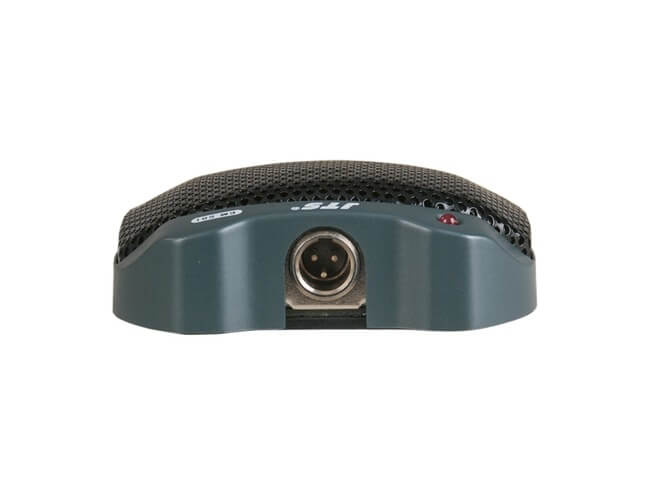

• Connection: 3-pole mini XLR plug, balanced
