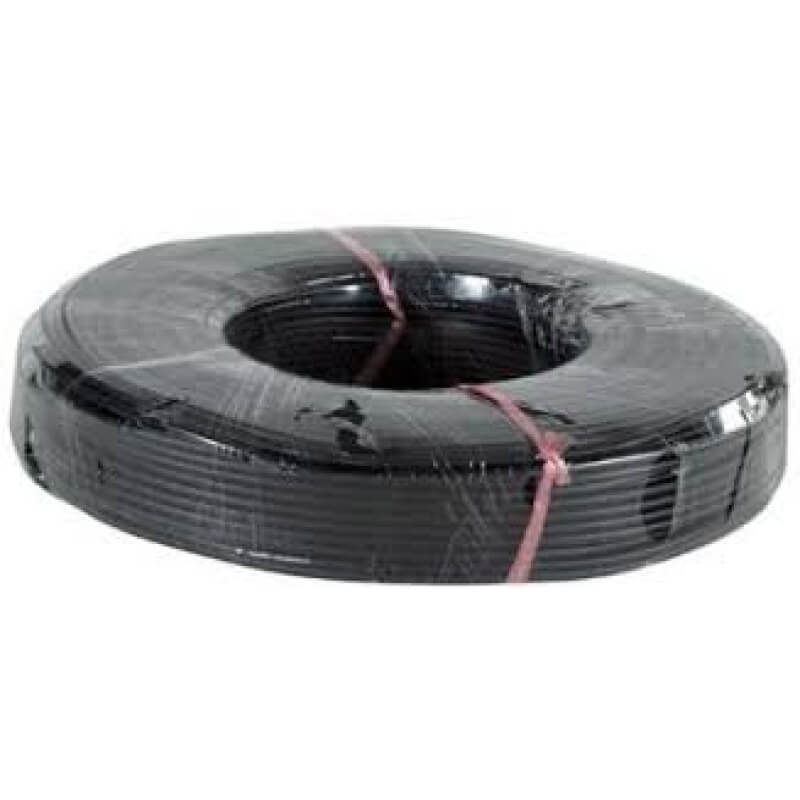

EWI DMX-301-100 - DMX Cable - 100m Roll

The EWI DMX-301-100 is a high-quality DMX cable designed for reliable performance in professional audio and lighting applications. With its robust construction and excellent shielding, this cable ensures minimal signal degradation over long distances, making it ideal for stage and live PA setups.

Features

• High-Quality Construction: Features a braided shield for enhanced durability and protection against interference.
• 110 Ohm Impedance: Specifically designed for DMX applications to ensure optimal signal transmission.
• Two Inner Conductors: Composed of 2 x 0.35mm² (22AWG) conductors for reliable connectivity.
• Temperature Resistant: Operates effectively in a wide temperature range of -20°C to +80°C.
• High Shield Coverage: Offers 99% shielding coverage to minimize signal loss and external noise.
• Lightweight and Flexible: Easy to handle and install, making it suitable for various setups.

Specifications

• Conductor Insulation: XLPE 1.45mm
• Copper Strand per Conductor: 7 x 0.26TA mm
• Shielding: Spiral shield 70 x 0.12TA
• Capacitance per 1m: 68pF (Conductor), 121pF (Shield)
• Conductor Resistance per 1km: 52Ω
• Surge Impedance at 200MHz: 110Ω
• Jacket Diameter: 6.0mm
• Jacket Color: Black
• Weight per 100m: 5.1kgs
• Shipping Weight: 16 lbs/100m roll (approx. 328ft/roll)
• Warranty: 3 years covering manufacturing defects.
