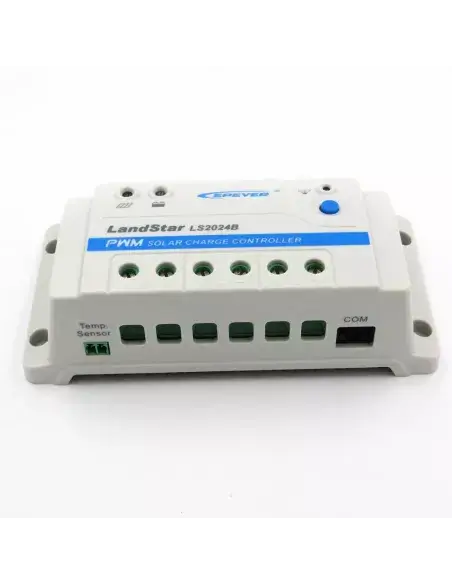

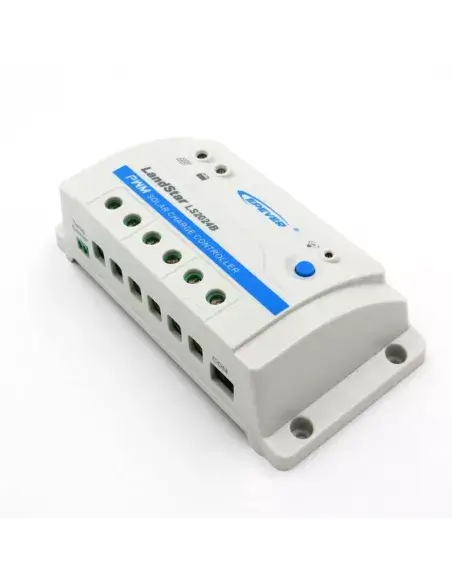

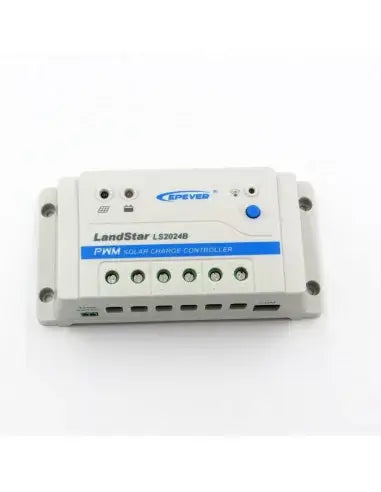

EP Solar EPever PWM Solar Regulator - 20A

The EP Solar EPever PWM Solar Regulator - 20A is designed for efficient solar energy management in off-grid applications. This regulator supports both 12V and 24V systems, making it versatile for various solar setups. With a maximum charging current of 20A, it ensures optimal battery charging while protecting against overcharging and discharging.

Features

• PWM Charging Technology: Offers efficient energy management and prolongs battery life.
• Dual Voltage Support: Automatically detects and supports 12V and 24V systems.
• Multiple Load Control Modes: Provides flexibility in managing different load types.
• Extensive Protection Features: Includes overcharge, over-discharge, and short circuit protection.
• RS485 Communication Interface: Enables remote monitoring and configuration through compatible devices.

Specifications

• Nominal System Voltage: 12/24VDC Auto
• Rated Charge Current: 20A
• Max PV Open Circuit Voltage: 50V
• Self-consumption: ≤8.4mA/12V; ≤7.8mA/24V
• Operating Temperature Range: -35℃ to 50℃
• Dimensions: 159.6mm x 81.4mm x 47.8mm
• Net Weight: 0.30kg
