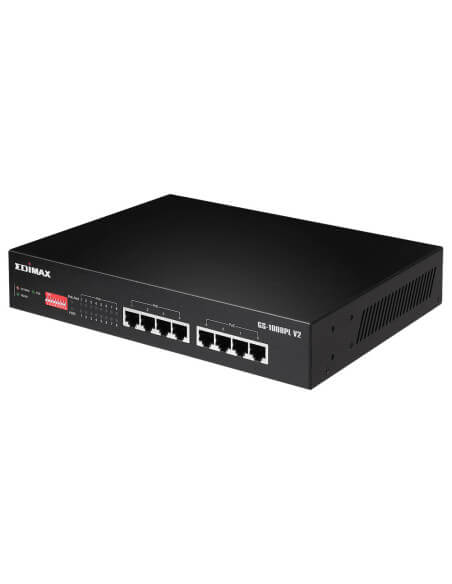

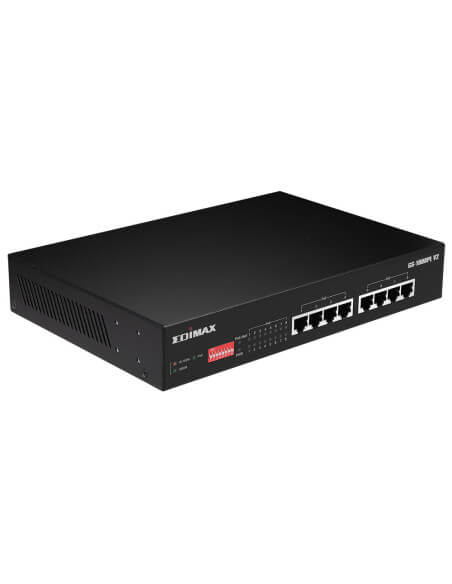

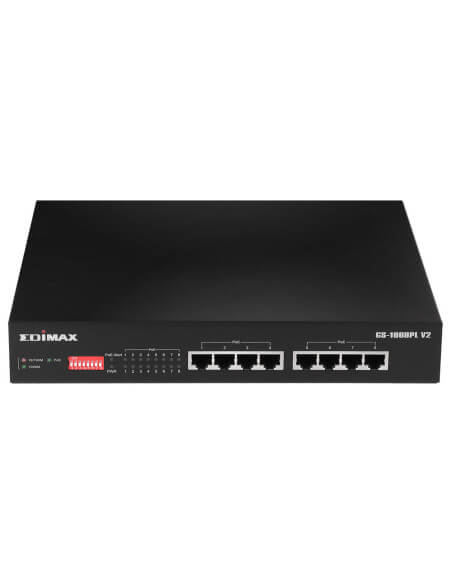

Edimax 8-Port Gigabit PoE+ Switch with DIP Switch

The Edimax GS-1008PL V2 is a Long Range 8-Port Gigabit PoE+ Switch designed for home and small to medium-sized network environments. It features 8 DIP switches for manual ON-OFF control of PoE ports, extending PoE delivery distances up to 200 meters while supporting port-based VLAN and QoS functions, making it ideal for various applications including IP cameras and wireless access points.

Features

• Long Range PoE Extension: Extend PoE delivery distance up to 200 meters.
• DIP Switch Control: 8 DIP switches for manual ON-OFF control of PoE ports.
• Port-based VLAN: Isolate ports to prevent multicast or broadcast storms.
• Quality of Service (QoS): Supports 802.1p QoS for prioritizing video and voice traffic.
• Plug-and-Play: Easy setup with no installation required.
• Fanless Design: Ensures quiet operation and compact size.
• Power Backfeed Protection: Prevents damage to PoE ports from incorrect power connections.

Specifications

• Ports: 8 x RJ-45 10/100/1000Base-T PoE+ ports
• Power Output: Up to 30W per PoE port
• Power Budget: 130W total power budget
• Switching Capacity: 16Gbps
• MAC Address Table: 4K
• Buffer Memory: 1.5Mb
• Operating Temperature: 0 ~ 40 °C
• Storage Temperature: -40 ~ 70 °C
• Humidity: Operating 10 ~ 90%, Storage 5 ~ 90% RH
• Dimensions: 265.1 mm (L) x 183.7 mm (W) x 44 mm (H)
• Weight: 1.609 kg
