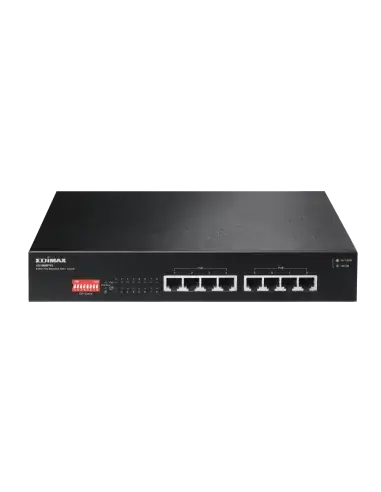

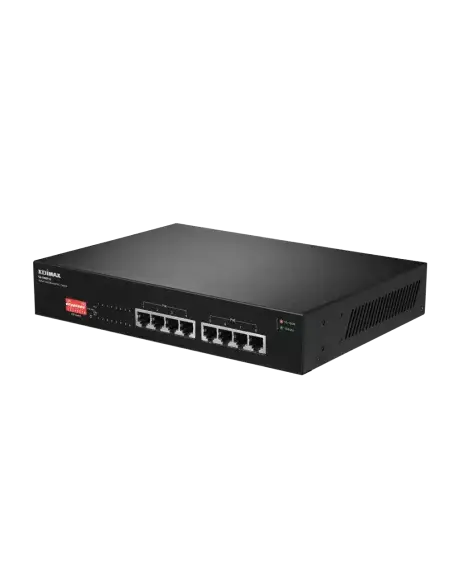

Edimax 8-Port Gb PoE+ Switch

The Edimax GS1008Pv2 is a versatile 8-port Gigabit PoE+ switch designed for small to medium-sized networks, offering advanced features such as long-range PoE delivery, VLAN support, and QoS for optimized performance.

Features

• 8 PoE+ Ports: Provides power and data connectivity for up to 8 devices.
• Manual DIP Switch Control: Allows users to manually set PoE ports on/off, extending PoE delivery distance up to 200 meters.
• Port-based VLAN Support: Isolates ports to prevent multicast/broadcast storms, enhancing network stability.
• Quality of Service (QoS): Prioritizes video and voice traffic to ensure smooth and uninterrupted service.
• Fan-less Design: Operates quietly, making it suitable for office environments.
• Plug and Play: Easy setup with no installation required, reducing deployment time.
• Energy Efficient: Supports IEEE 802.3az Energy Efficient Ethernet, lowering power consumption during low data activity.

Specifications

• Ports: 8 x RJ-45 10/100/1000Base-T PoE+ ports

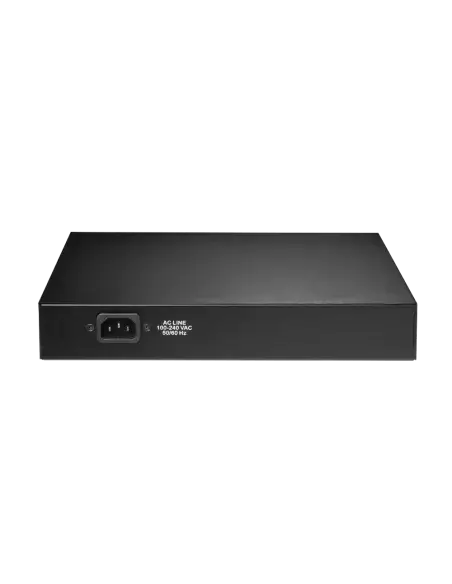

• Power Input: 100-240V AC, 50-60Hz
• Total Power Supply: 160W
• PoE Power Budget: 130W
• Temperature Range: Operating 0 ~ 40 °C, Storage -40 ~ 70 °C
• Humidity: Operating 10 ~ 90%, Storage 5 ~ 90% RH
• Dimensions: 265.1mm (L) x 183.7mm (W) x 44mm (H)
• Weight: 1.609kg
• Switching Capacity: 16Gbps
• MAC Address Table: 4K
• Buffer Memory: 1.5Mb
• Jumbo Frames Support: Up to 9KB
