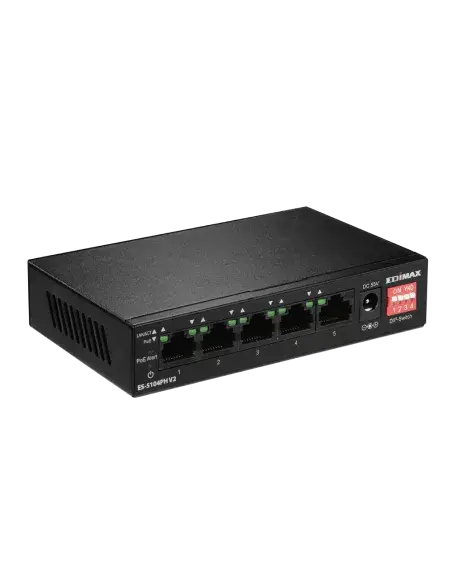

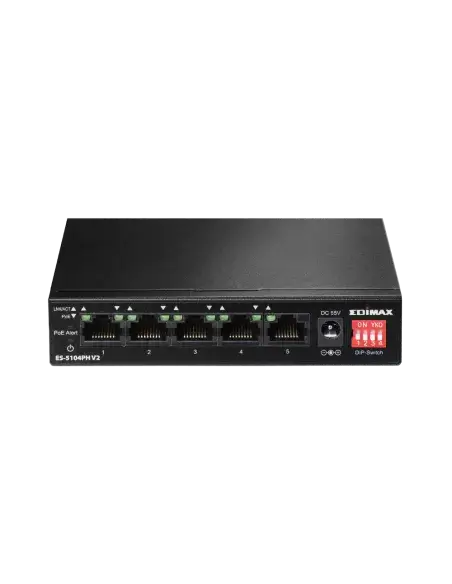

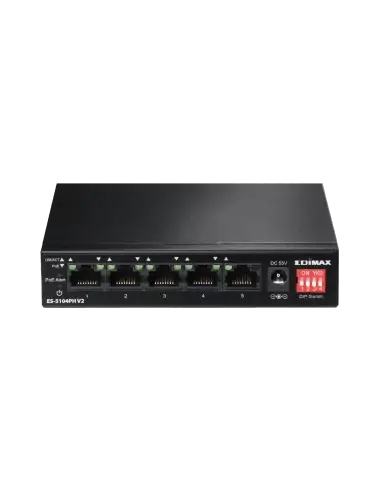

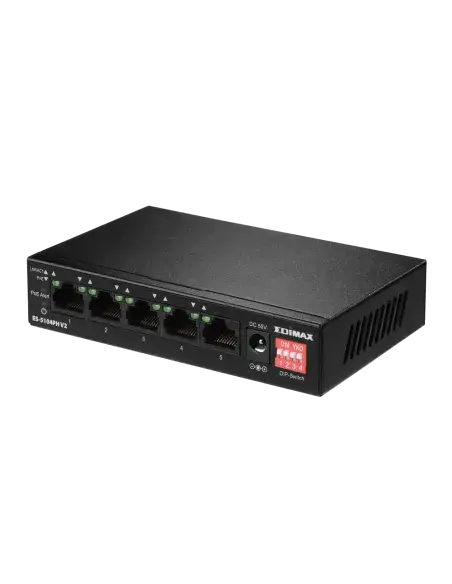

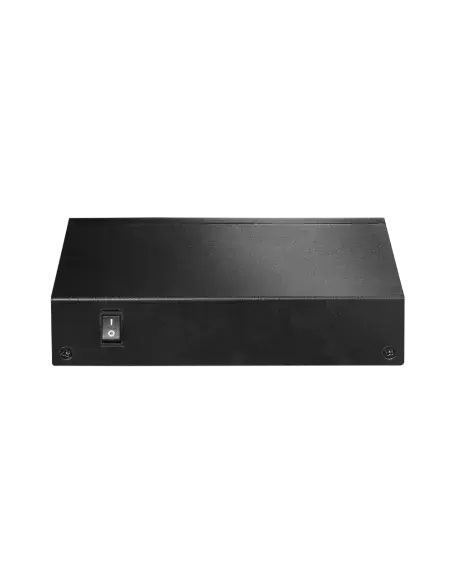

Edimax 5-Port PoE Switch - 4 PoE+ Ports

The Edimax ES5104PHV2 is a versatile 5-port Fast Ethernet switch designed for small to medium-sized networks. It features 4 PoE+ ports, allowing for efficient power and data transmission over existing network cables, making it ideal for connecting devices like IP cameras and access points.

Features

• Five Ports: Includes 5 RJ-45 10/100Base-T ports, with 4 supporting PoE+ for power delivery.
• PoE+ Capability: Each PoE+ port can deliver up to 30 watts of power, supporting a total power budget of 60 watts.
• Extended Range: The switch can extend PoE delivery distance up to 200 meters with DIP switch settings.
• VLAN Support: Features port-based VLAN and QoS for better traffic management.
• Fanless Design: Ensures quiet operation, making it suitable for office environments.

Specifications

• Power Input: 100-240V AC, 50-60 Hz
• Power Consumption: 3W
• Dimensions (L x W x H): 121mm x 75mm x 26mm
• Weight: 0.2405 kg
• Switching Capacity: 1G
• MAC Address Table: 1K
• Buffer Memory: 448K
• Operating Temperature: 0 ~ 40 °C
• Storage Temperature: -40 ~ 70 °C
• Humidity: Operating 10 ~ 90%, Storage 5 ~ 90%
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
