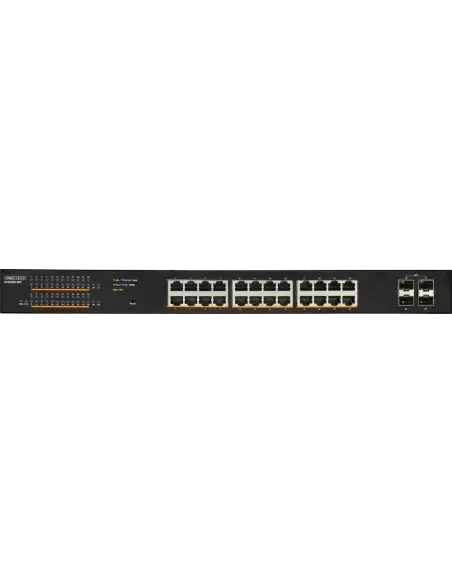

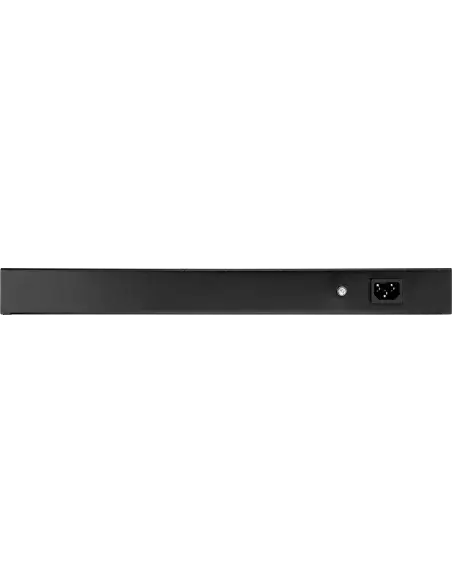

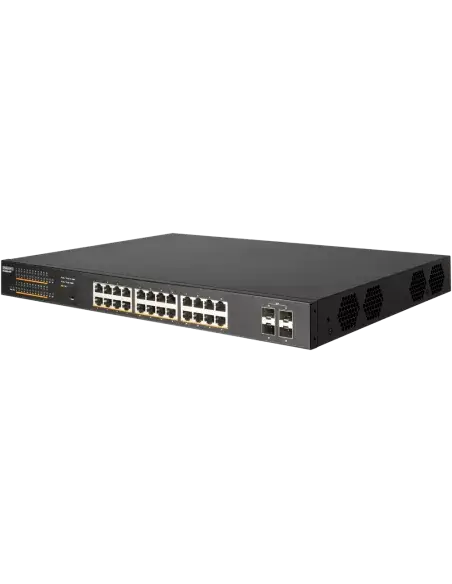

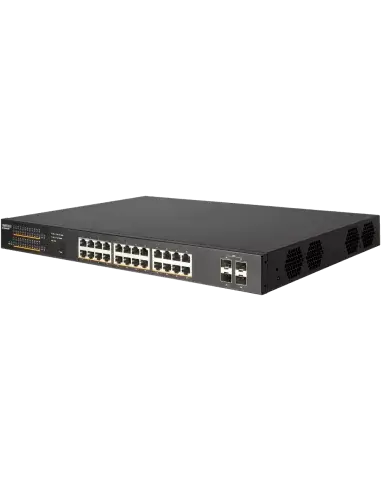

Edge-Core 28-Port Gb Websmart PoE Switch

The Edge-Core 28-Port Gb Websmart PoE Switch (Model: EC-ECS2020-28P) is a cost-effective and advanced networking solution designed for SMB and enterprise markets. With 28 gigabit ports, it supports Power over Ethernet (PoE) capabilities, ensuring seamless connectivity for your IP devices such as cameras and phones. This switch is engineered for efficiency and reliability, featuring comprehensive management options and robust security measures.

Features

• PoE Support: Delivers up to 190W of PoE power, supporting various devices like IP cameras and VoIP phones.
• Web-Smart Management: Offers user-friendly web-based management, SNMP, and Telnet access for easy configuration.
• Advanced Security: Includes features like ACLs, port security, and DDOS protection to safeguard your network.
• Quality of Service (QoS): Supports 8 hardware queues for effective traffic management, ensuring optimal performance for voice and video applications.
• Energy Efficiency: Complies with IEEE 802.3az Energy Efficient Ethernet standards, reducing power consumption during low traffic periods.
• Dual Configuration: Allows saving of dual configuration files for redundancy and increased security.

Specifications

• Switching Capacity: 56 Gbps
• Forwarding Rate: 41.7 Mpps
• Flash Memory: 16 MB
• DRAM: 128 MB
• Packet Buffer: 4.1 Mbits
• MAC Address Table: 8 K
• Jumbo Frames: 10 K
• Mean Time Between Failures (MTBF): 83,923 hrs
• Operating Temperature: 0ºC to 50ºC
• Dimensions: 440 x 318 x 44 mm
• Weight: 4.2 kg
