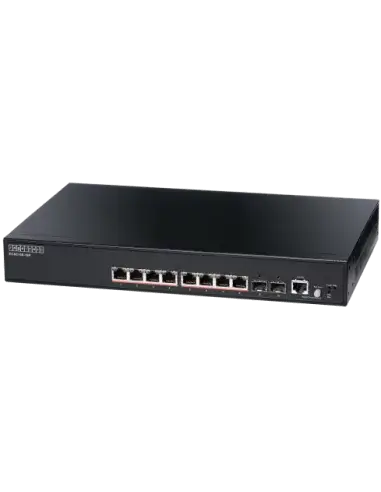

Edge-Core 10-Port Gb Websmart Pro PoE Switch

The Edge-Core 10-Port Gb Websmart Pro PoE Switch (EC-ECS2100-10P) is a versatile web-smart switch designed specifically for small to medium-sized businesses. It provides robust performance with Power over Ethernet (PoE) capabilities, allowing for easy integration of network devices such as IP cameras, VoIP phones, and wireless access points without the need for additional power sources.

Features

• Web-Smart Functionality: Offers user-friendly management through a web interface, enabling easy configuration and monitoring.
• Power over Ethernet (PoE): Supports 8 PoE ports with a maximum budget of 125W, providing power to connected devices directly through the Ethernet cable.
• Versatile Deployment: Suitable for various network topologies, accommodating both small and large installations.
• Fanless Design: Ensures silent operation, making it ideal for office environments.
• High Performance: Features a switching capacity of 20 Gbps and a forwarding rate of 14.9 Mpps, ensuring efficient data handling.

Specifications

• Model: EC-ECS2100-10P
• Ports: 8 x 10/100/1000BASE-T PoE ports + 2 x Gigabit SFP uplink ports
• Console Port: 1 x RJ45
• PoE Budget: 125W maximum
• Flash Memory: 32 MB
• DRAM: 256 MB
• Packet Buffer: 4.1 Mbits
• MAC Address Table: 8K
• Jumbo Frames: 10K
• Mean Time Between Failures (MTBF): 2,196,413 hours
• Heat Dissipation: 545.933 Btu/H
• Acoustic Noise: 0 dB (A)
