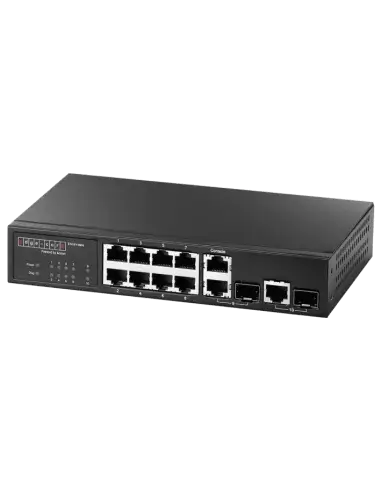

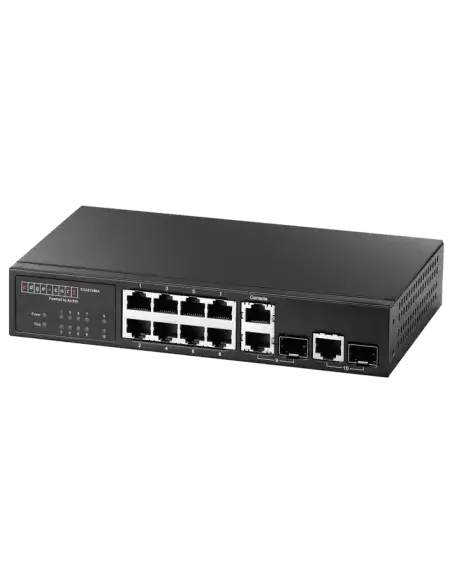

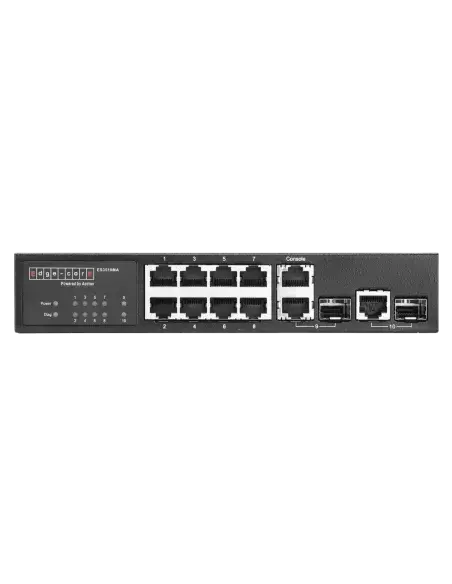

Edge-Core 10-Port Fast Ethernet Layer 2/4 Switch

The Edge-Core ES3510MA is a high-performance Fast Ethernet Layer 2/4 switch featuring 10 ports, including 8 10/100 Mbps ports and 2 combination Gigabit Ethernet RJ-45/SFP ports. It is designed to provide reliable desktop connectivity and is ideal for wiring closet installations.

Features

• High-Performance Switching: Supports a switching capacity of 5.6 Gbps, ensuring efficient data transfer across all ports.
• Port Configuration: Includes 8 Fast Ethernet ports (10/100 Mbps) and 2 combo Gigabit Ethernet ports (RJ-45/SFP), offering flexible connectivity options.
• Continuous Availability: Utilizes IEEE 802.1w Rapid Spanning Tree Protocol and IEEE 802.1s Multiple Spanning Tree Protocol for quick recovery from link failures.
• Enhanced Security: Features port security, IEEE 802.1X access control, and Access Control Lists (ACLs) for robust network protection.
• Comprehensive QoS: Prioritizes traffic for real-time applications such as voice and video, ensuring optimal performance.
• Simple Management: Managed via an industry-standard command-line interface (CLI) and supports various network management protocols.

Specifications

• Switching Capability: 5.6 Gbps
• Packet Buffer Size: 4 MBit
• MAC Address Table: 8 K
• Forwarding Rate: 4.1 Mpps
• Dimensions (W x D x H): 195 mm x 115 mm x 36 mm
• Weight: 0.68 kg
• Power Supply: 36 to 75 VDC
• Power Consumption: 32 Watts maximum
