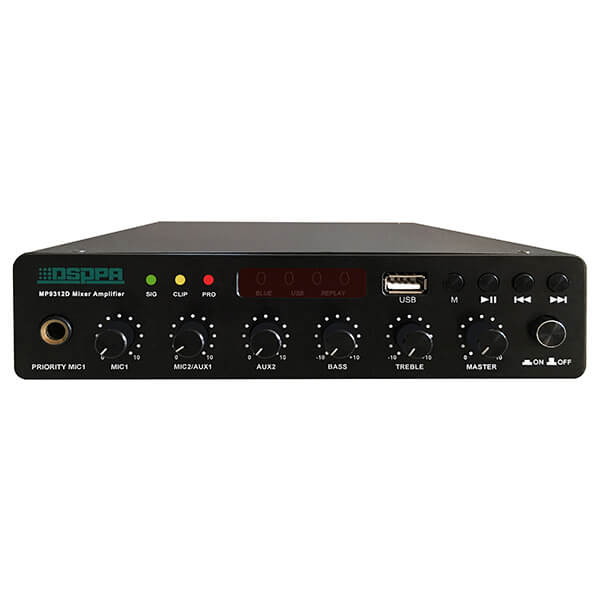

DSPPA MP-9312U: 120W Ultra Thin 100V Digital Mixer Amp with

The DSPPA MP-9312U is a cutting-edge digital mixer amplifier designed for high performance and versatility. With a rated output power of 120W, it is perfect for various audio applications, featuring Bluetooth and USB connectivity for seamless audio streaming and control. Its ultra-thin design makes it ideal for installations where space is limited.

Features

• High Efficiency: Built-in digital amplifier module with 85% efficiency.
• Multiple Input Options: Supports 2 AUX and 2 microphone inputs with individual volume control.
• Bluetooth and USB Support: Easily connect and stream audio wirelessly or via USB.
• Priority Input Function: Prioritizes input sources for optimal audio management.
• Comprehensive Protection: Equipped with short-circuit, overload, and high-temperature protection.
• User-Friendly Interface: Features signal level indicators, clip indicators, and a digital display screen.

Specifications

• Model: MP9312U
• Rated Output Power: 120W (Note: Please use a constant-voltage speaker within the power range)
• Rated Output Voltage: 100V
• Sensitivity: MIC1 IN 0.005(±1mV), MIC2 IN 0.006(±1mV), LINE IN 0.3(±20mV) VRMS
• SNR: MIC1, MIC2, LINE1 IN ≥74dB (MAX.), LINE2 IN, INPUT PRIORITY ≥80dB (MAX.)
• Frequency Range: 80Hz-15kHz (±3dB)
• Total Harmonic Distortion (THD): ≤0.5% (1K under normal working condition)
• Working Voltage: AC180-250V/50-60Hz
• Tone Control: Bass ±10dB (100Hz), Treble ±10dB (10kHz)
• Rated Power Consumption: 180W
• Package Dimensions: 310×275×120mm
• Machine Dimensions: 200×190×44mm
• Net Weight: 1.5kg
• Gross Weight: 2kg
