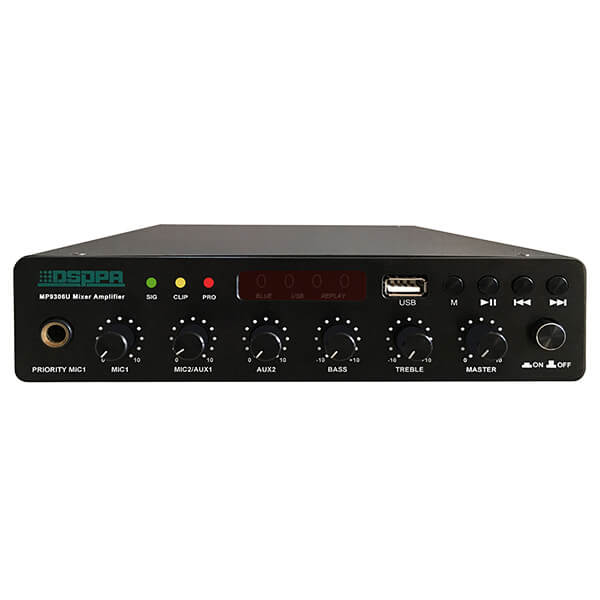

DSPPA MP-9306U: 60W Ultra Thin Digital Mixer Amp with USB & Bluetooth

The DSPPA MP-9306U is a compact and efficient digital mixer amplifier designed for professional audio applications. With a rated output power of 60W and multiple connectivity options, including Bluetooth and USB, it provides versatile audio solutions for various environments.

Features

• Three Working Modes: Supports Bluetooth, USB, and line input for flexible audio playback.
• Wireless Bluetooth Playback: Stream music wirelessly from compatible devices.
• Remote Control: Easily control settings and playback from a distance.
• Signal Level Indicator: Provides visual feedback on signal strength.
• Clip Indicator: Alerts users to potential distortion from overdriving the amplifier.
• Protection Features: Includes short-circuit, overload, and high-temperature protection, ensuring safe operation.
• Individual Volume Controls: Allows separate adjustment for Mic 1, Mic 2, line inputs, bass, treble, and master volume.
• Compact Design: Ultra-thin form factor saves space and is easy to integrate into any setup.

Specifications

• Rated Output Power: 60W (Note: Please use a constant-voltage speaker within the power range)
• Rated Output Voltage: 100V
• Sensitivity MIC1 IN: 0.005(±1mV)
• Sensitivity MIC2 IN: 0.006(±1mV)
• LINE1 IN, LINE2 IN, PRIORITY IN: 0.3(±20mV) VRMS
• SNR (Signal-to-Noise Ratio): MIC1, MIC2, LINE1 IN ≥74dB (MAX.), LINE2 IN, INPUT PRIORITY ≥80dB (MAX.)
• Frequency Range: 80Hz-15kHz (±3dB)
• Total Harmonic Distortion (THD): ≤0.5% (1K under normal working condition)
• Working Voltage: AC180-250V/50-60Hz
• Rated Power Consumption: 90W
• Package Dimensions: 310 × 275 × 120 mm
• Machine Dimensions: 200 × 190 × 44 mm
• Net Weight: 1.5 kg
• Gross Weight: 2 kg
